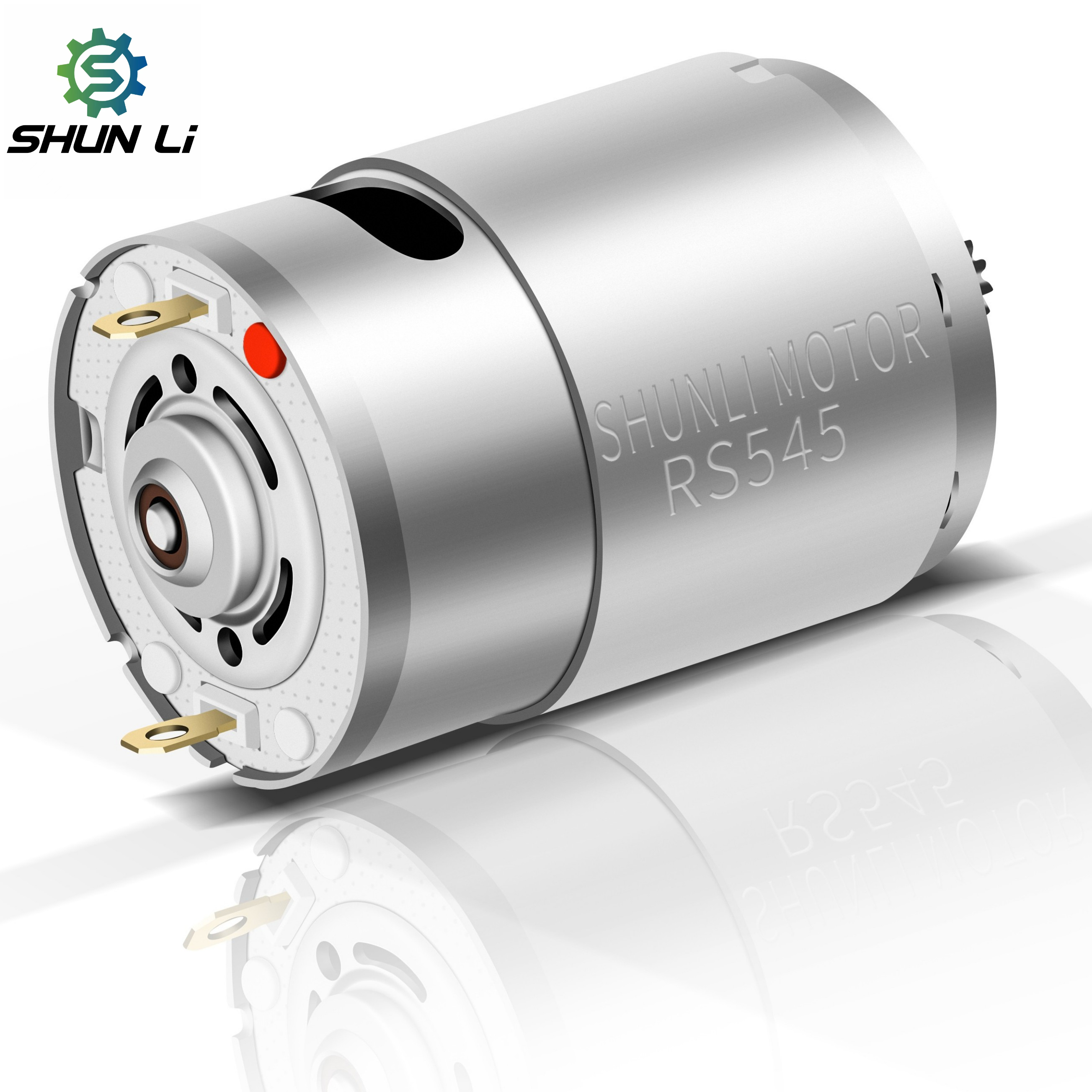

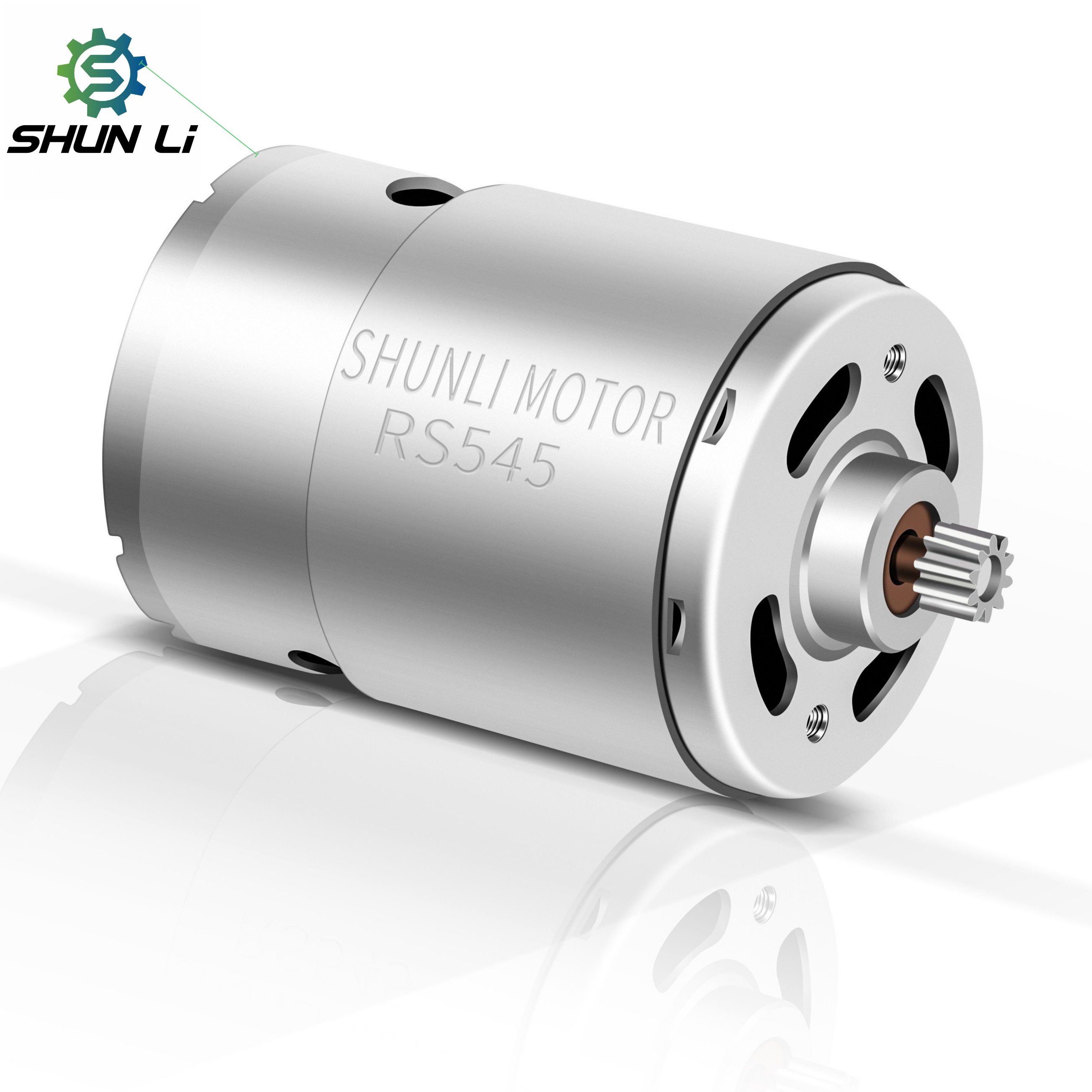

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

1 / 4

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

Send Inquiry

Product Description

SRS-555 12v 24v micro dc motor for water pump

Motor Customized Specification, Please contact me.

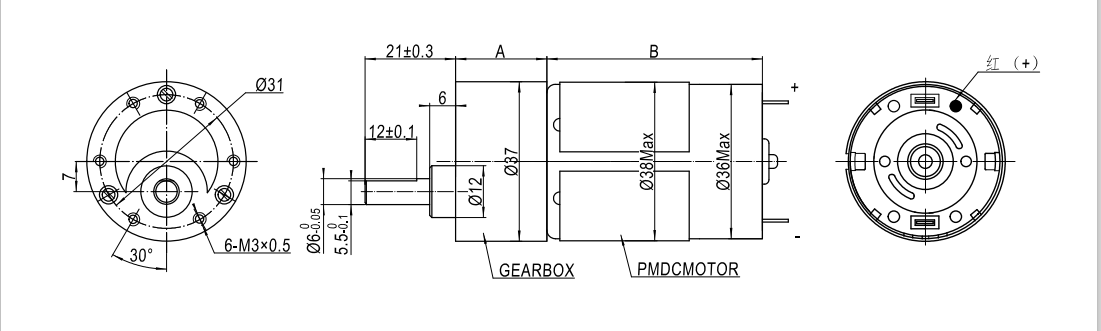

Reference Drawing

RS - 545 A

RS - 555 A

RS - 575 A

The length of shaft can be customized, Please contact me.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

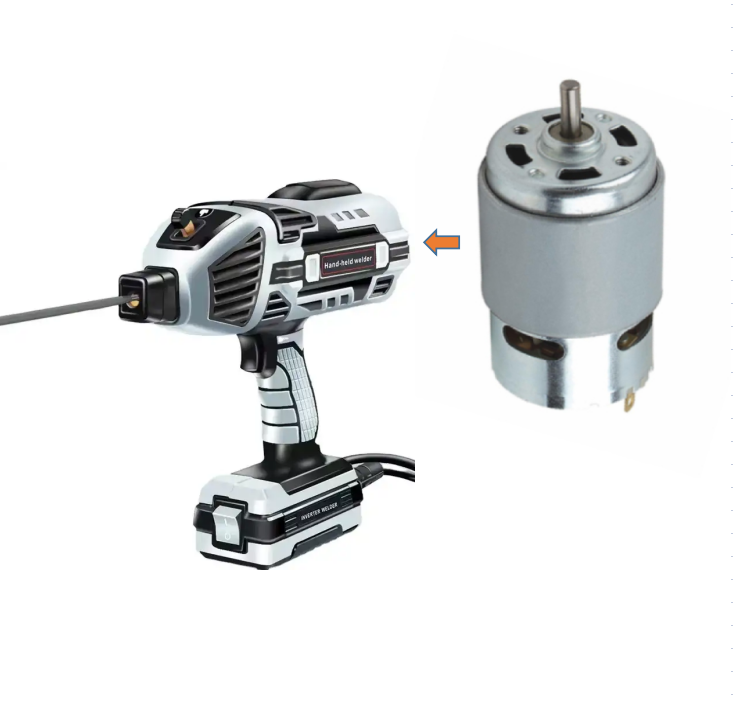

Application

Certifications

FAQ

Are you trading company or manufacturer?

We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

What is the payment term for a new customer?

We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

I can't find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customer's requirements.

Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

How is your Quality Control?

We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

Looking forward to your feedback!
