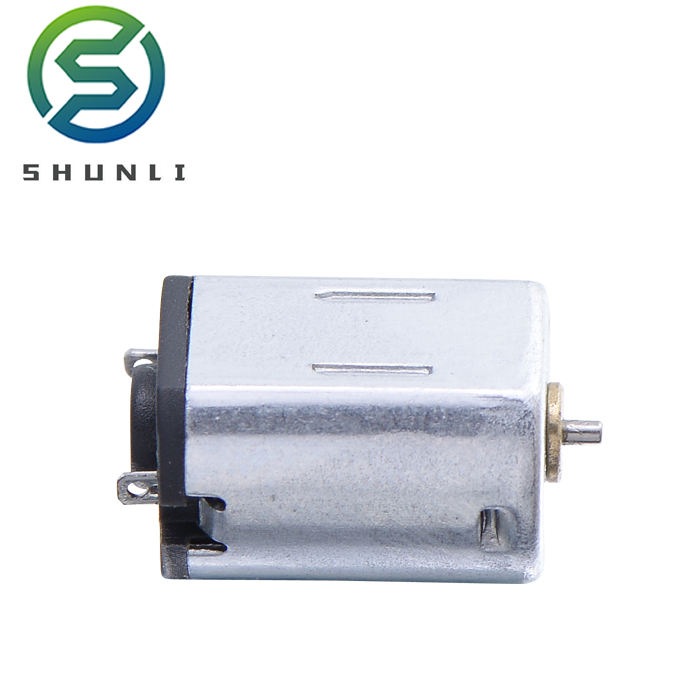

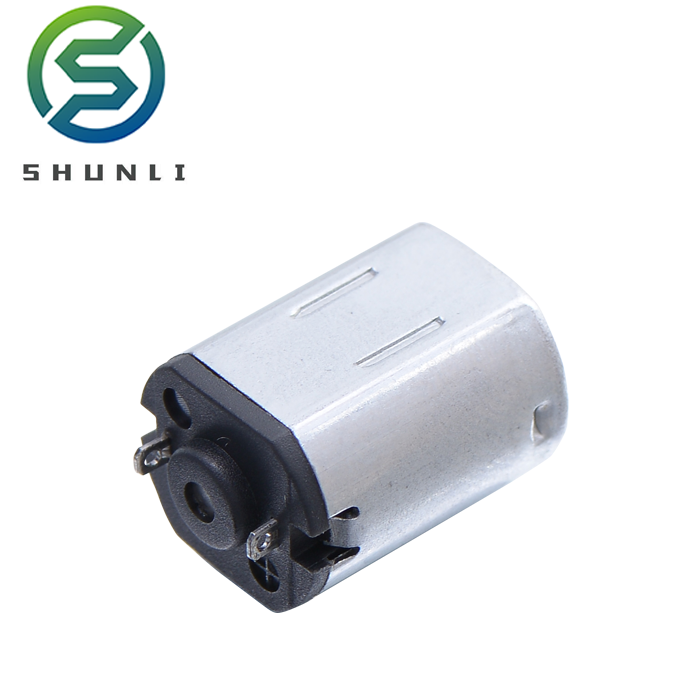

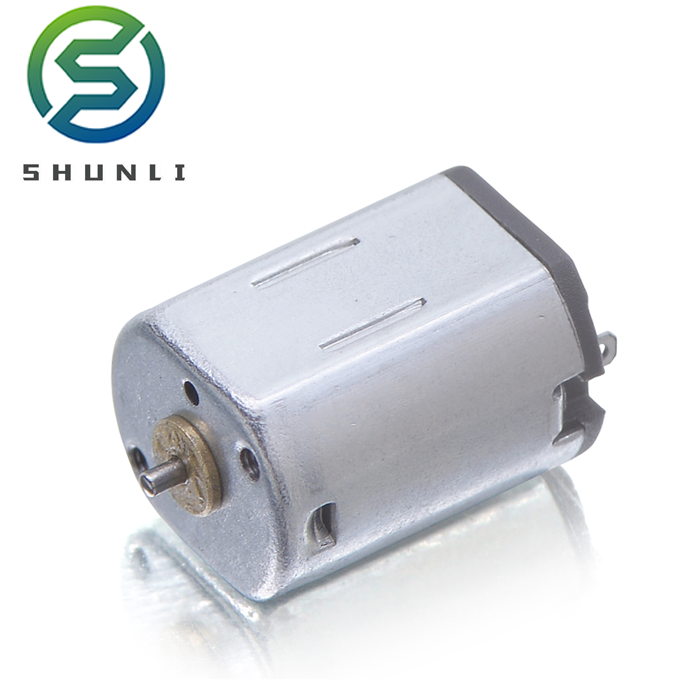

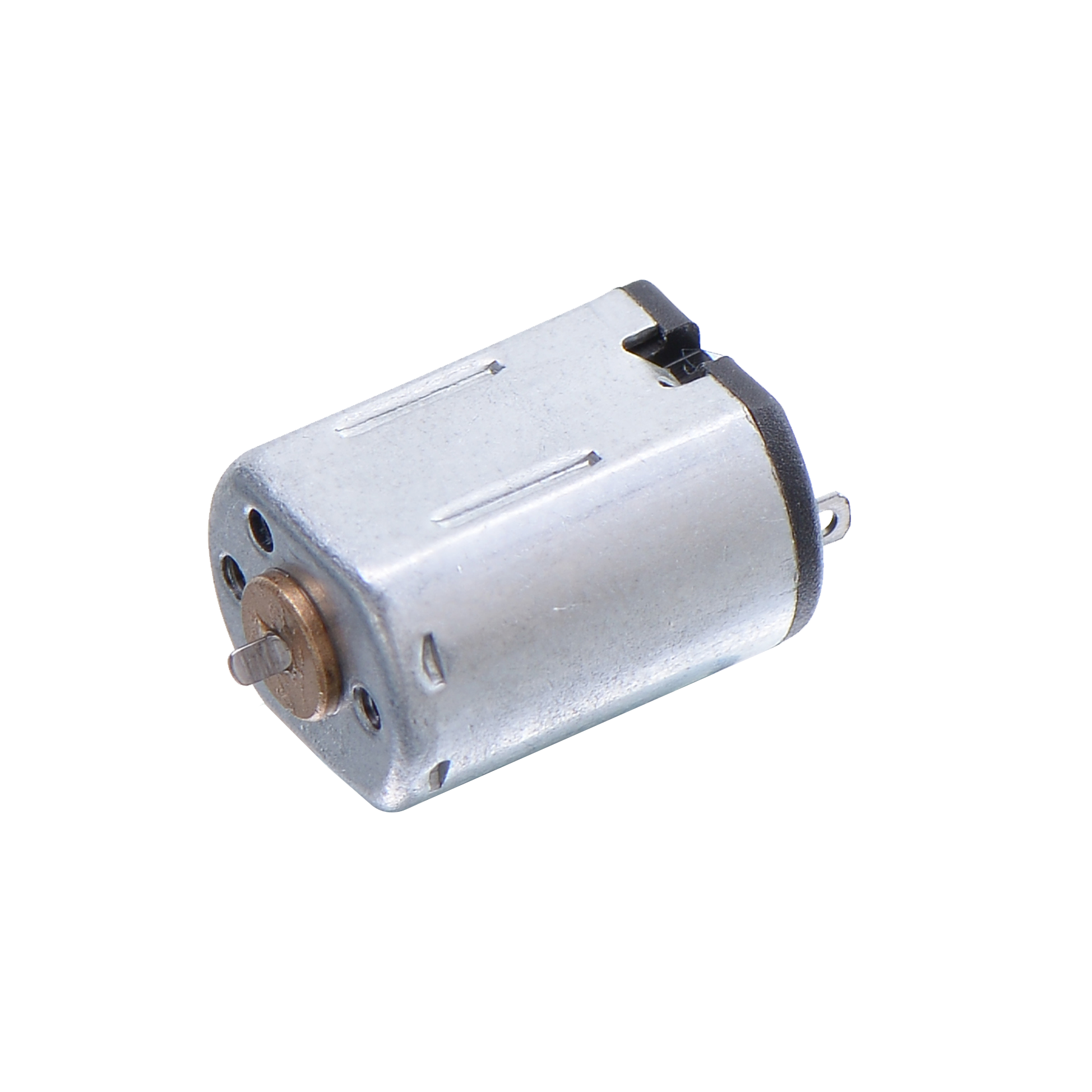

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

Customized Brush Lock Mini Electric Motor

Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

Product Description

PMDC MOTOR Technical Data
Model		Voltage (V)		No-Load		Rated Load				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (mA)	Speed (RPM)	Current (mA)	Torque (mN.m)	Power (W)	Current (mA)	Torque (mN.m)
FF-N20VA	05240	3.0~12.0	12 VDC	16100	15	12240	60	0.3 / 3	0.37	210	1.2 / 12
FF-N20VA	08260	2.0~5.0	5 VDC	14600	30	11800	110	0.26 / 2.6	0.31	470	1.3 / 13
FF-N20TA	2818	0.8~1.5	12 VDC	34000	70	31000	1140	0.2 / 2	0.64	6000	1.6 / 16

Applications

Certifications

Why Choose Us

Professional Manufacturer

We are a factory specializing in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant business experience.

Strict Quality Control

In order to confirm quality, every step of the process is carefully checked, from raw materials to final shipment. Quality is the basis of our development.

Our Services

High Credibility We are a trusted seller in possession of high industry credibility.

100% On-Time Delivery Our strict schedule adherence ensures your products arrive timely.

Fast Sample Production Standard samples are completed within 2 weeks; customized options take 3 weeks.

2-Hour Timely Reply Your message is important to us; all inquiries are replied to within 2 hours.

Frequently Asked Questions

1. Are you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

2. What is the payment term for a new customer?

We can draw up online trade assurance orders for our customers, allowing payments with Mastercard, Visa, etc. Customers can also pay with PayPal or T/T.

3. Can you customize the motor if I cannot find a suitable model?

Yes, we can customize a suitable motor according to our customer's specific requirements.

4. Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, and other industry certifications. We can also apply for other required certificates as requested.

5. How is your Quality Control managed?

We have professional inspection staff for each production stage. Every completed motor is thoroughly checked using testing machinery such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

6. What are the main features of the SFF-N20VA motor?

The SFF-N20VA series features long operational life, high working efficiency, and good stability, with drive integration inside the motor body for more precise data feedback.
