Product Description

Product Description

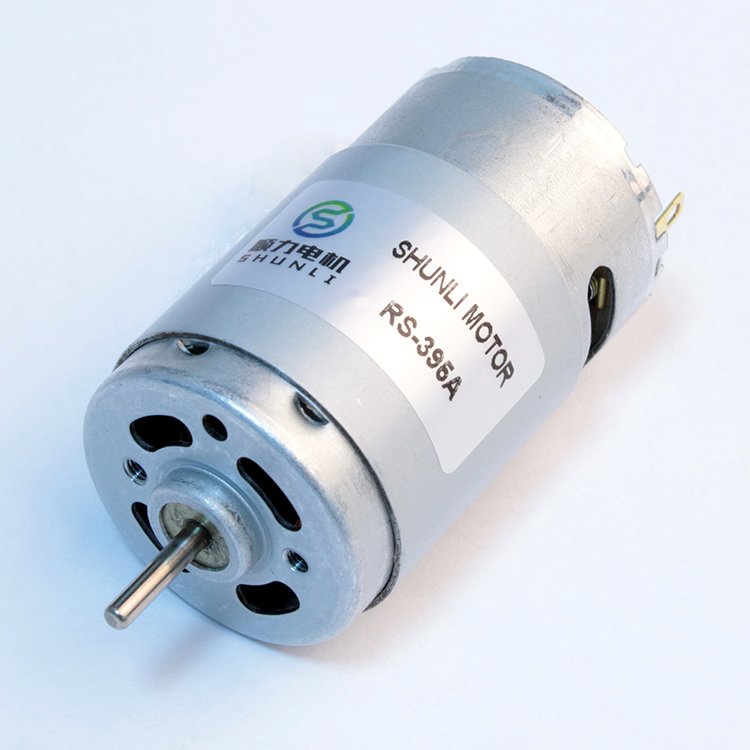

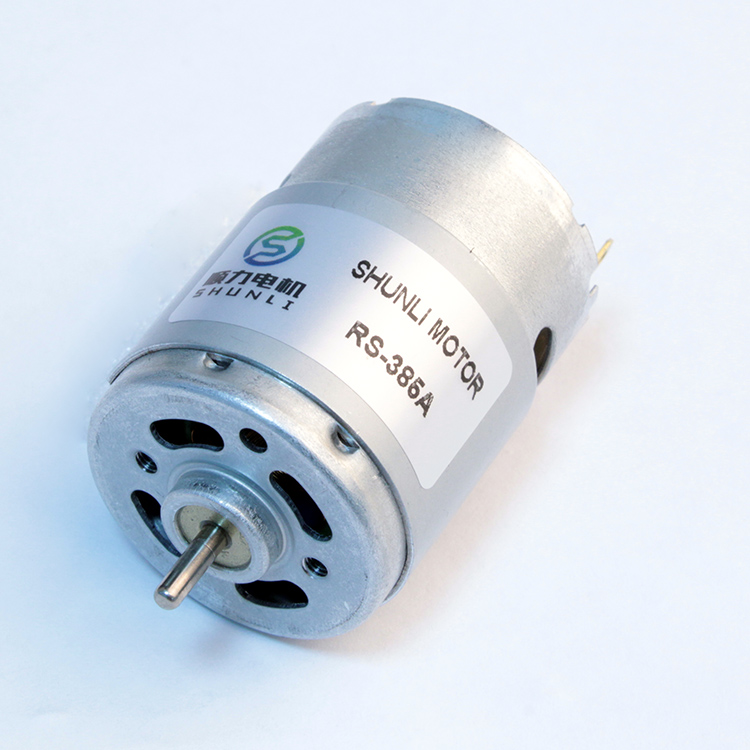

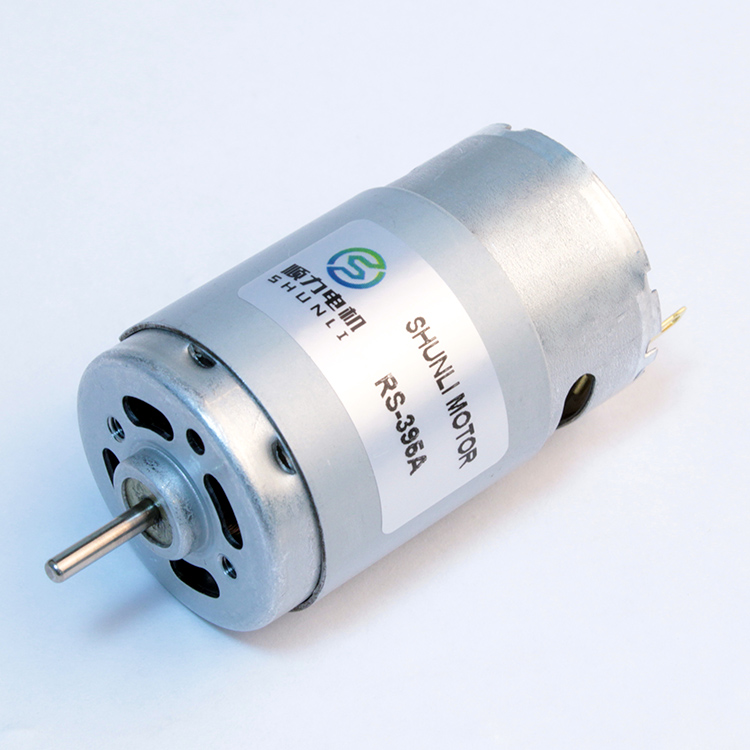

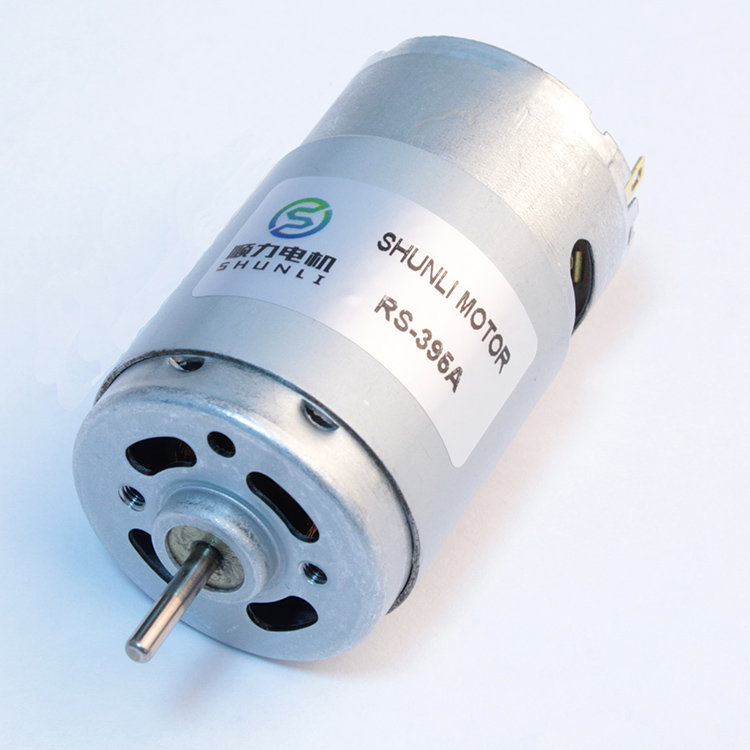

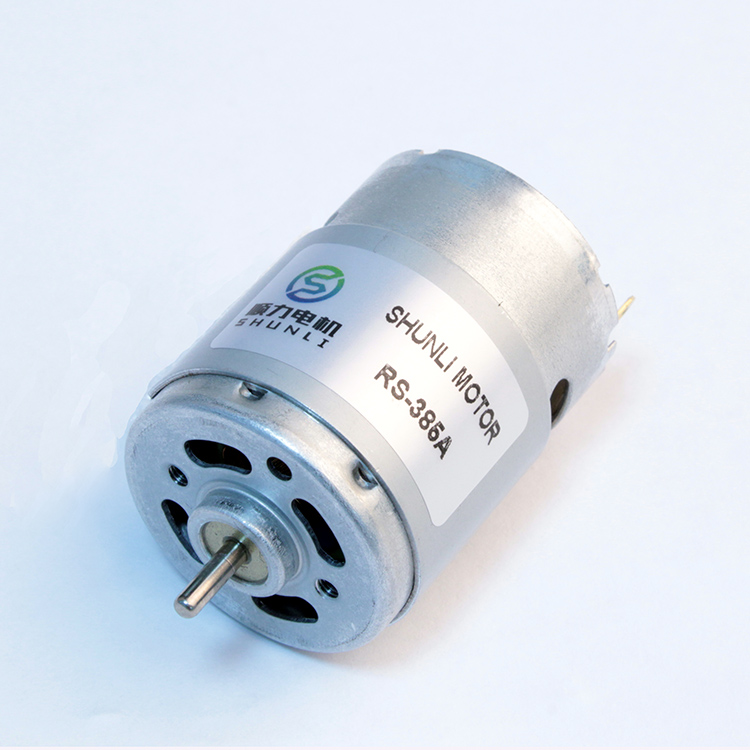

⚙️ Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12V DC Motor

Product Details

★ Motor Customized Specification Available

Reference Drawing

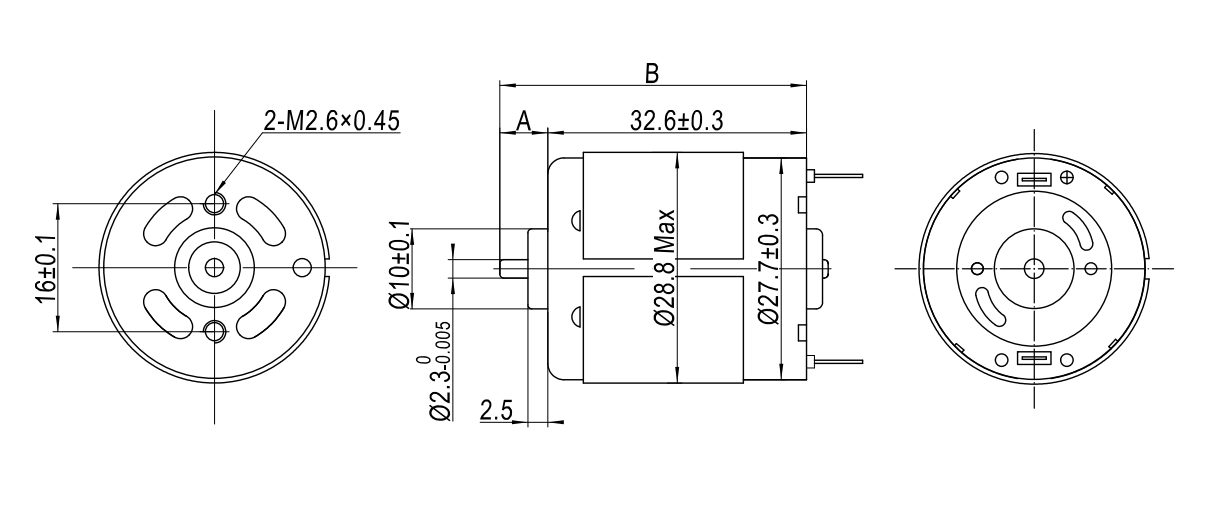

🔹 RS - 365

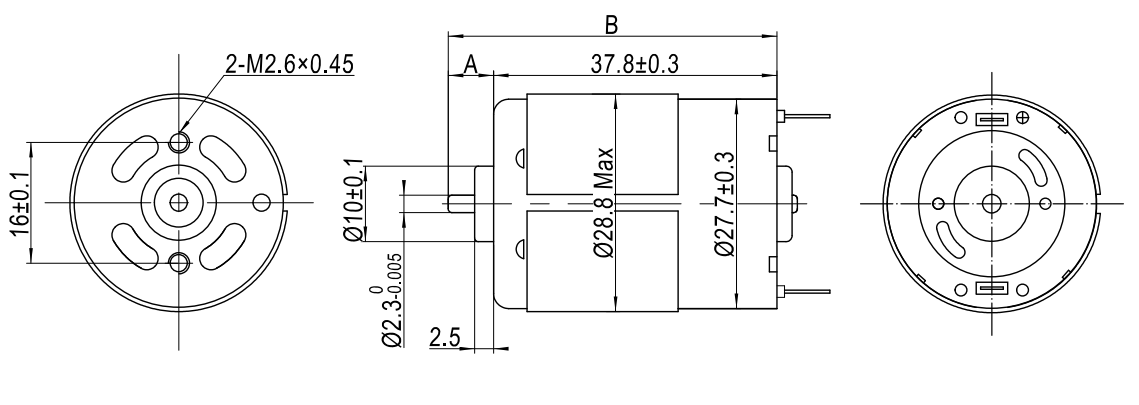

🔹 RS - 385

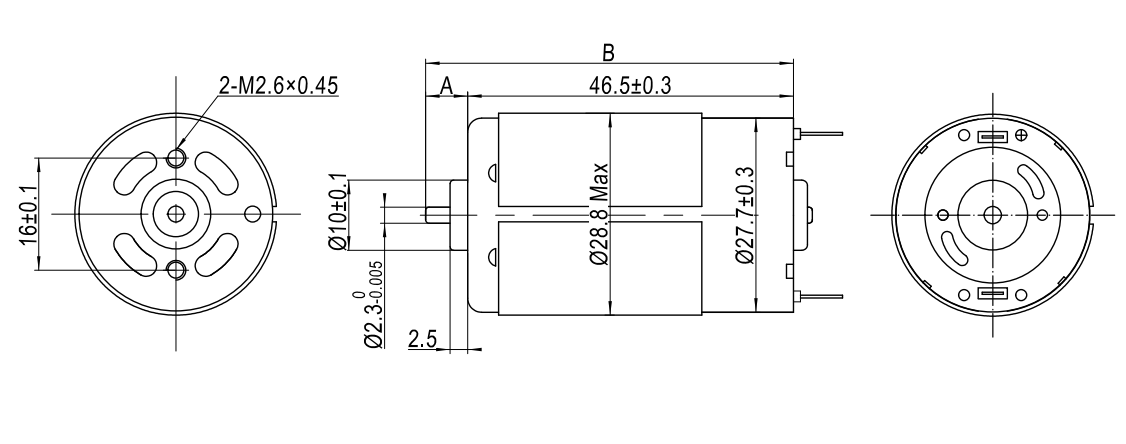

🔹 RS - 395

Note: The length of shaft can be customized.

Reference Datasheet

PMDC MOTOR Technical Data
Model	Rated Voltage (V)		No-Load		Rated				Stall
	Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
	Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH 20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07/61.9	2.72	2.22	42.2/430
RS-390SH 20156R	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75/58.6	1.31	8.9	80.4/820
RS-395SH 15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83/59.5	1.8	1.06	30.4/310
RS-395SH 15130	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09/72.3	6.68	2.66	54.9/560

Recommend Products

Frequently Asked Questions

What are the primary applications for the 390PH DC motor?

These motors are professionally designed for high-performance applications such as hair dryers and micro vacuum cleaners, where compact size and reliable power are essential.

Can the motor shaft length be customized?

Yes, the length of the shaft can be fully customized to meet your specific mechanical requirements. Please provide your drawing for a custom quote.

What voltage ranges do these PMDC motors support?

Our motor models, such as the RS-390SH and RS-395SH, typically operate within ranges from 6.0V up to 24.0V DC, depending on the specific model selected.

Do you offer both brush and brushless motor options?

Yes, as a professional manufacturer, we provide both brushed and brushless DC motor solutions tailored to various industrial and consumer electronics needs.

What information is included in the technical datasheet?

The datasheet provides comprehensive data including operating range, nominal voltage, no-load speed/current, rated speed/torque/power, and stall torque/current.

Are custom motor specifications available?

Absolutely. We specialize in custom motor specifications. You can contact us with your specific requirements for torque, speed, and dimensions.
