775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

1 / 5

775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Send Inquiry

Product Description

Product Description

775 dc motor for power tools low price motor 12v 24v dc motor

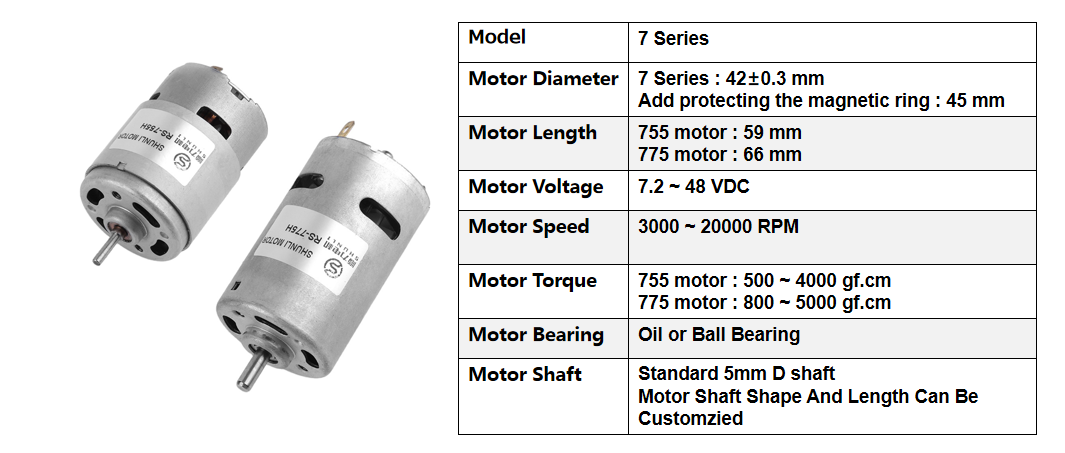

Product Details

Motor Customized Specification, Please contact me.

Reference Drawing

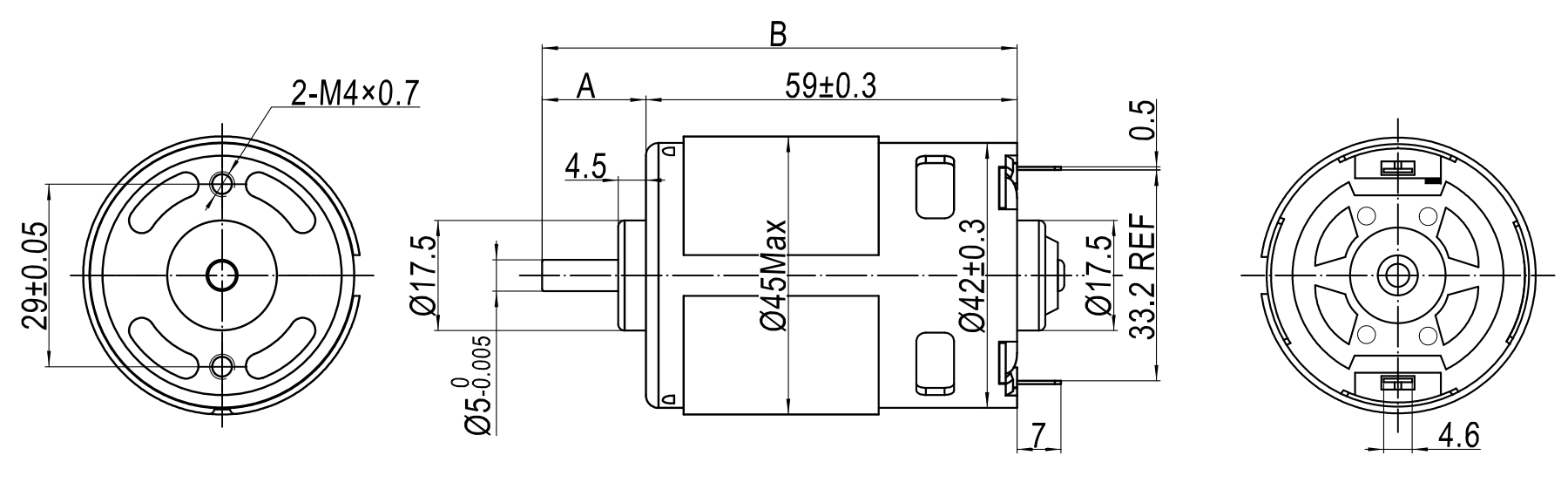

------ RS - 755 H

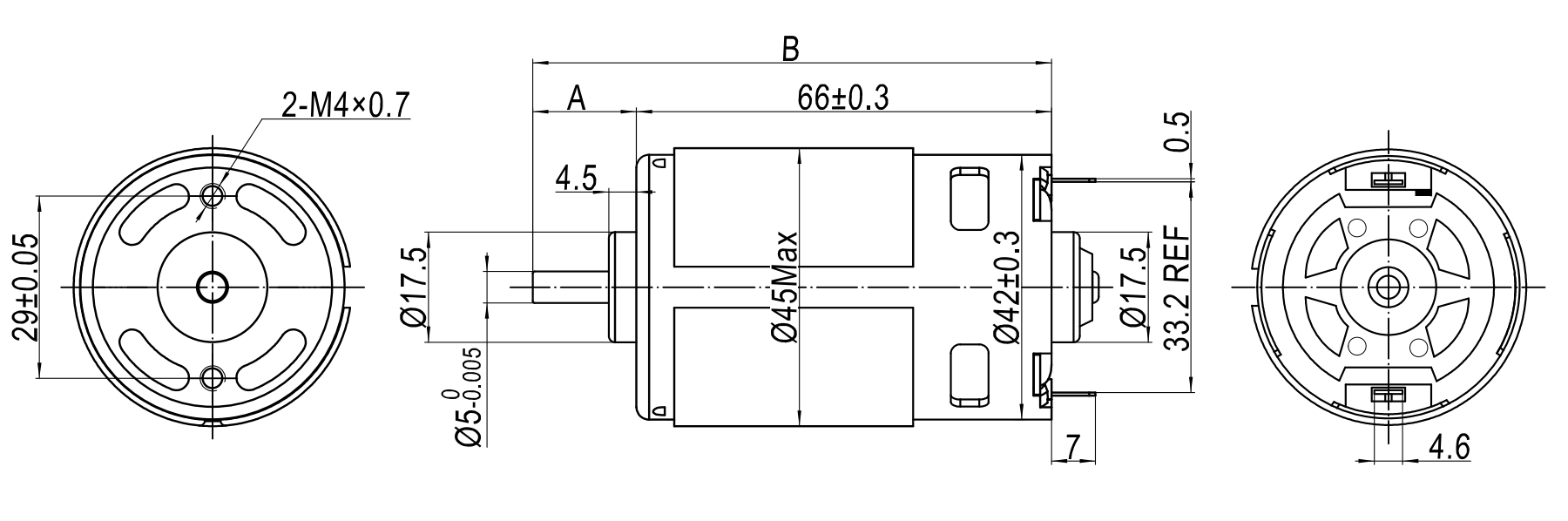

------ RS - 775 H

The length of shaft can be customized, Please contact me.

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-770H	8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81/826.2	111.8	115	666.9/6802
RS-775H	25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4/452.9	13.35	4.07	245.7/2506

Looking forward to your feedback!

Frequently Asked Questions

1 Are you trading company or manufacturer?

We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

2 What is the payment term for a new customer?

We can draw up an Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

3 I can't find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customer's requirements.

4 Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

5 How is your Quality Control?

We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor, including Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

Product Detail

775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Product Description

775 dc motor for power tools low price motor 12v 24v dc motor
