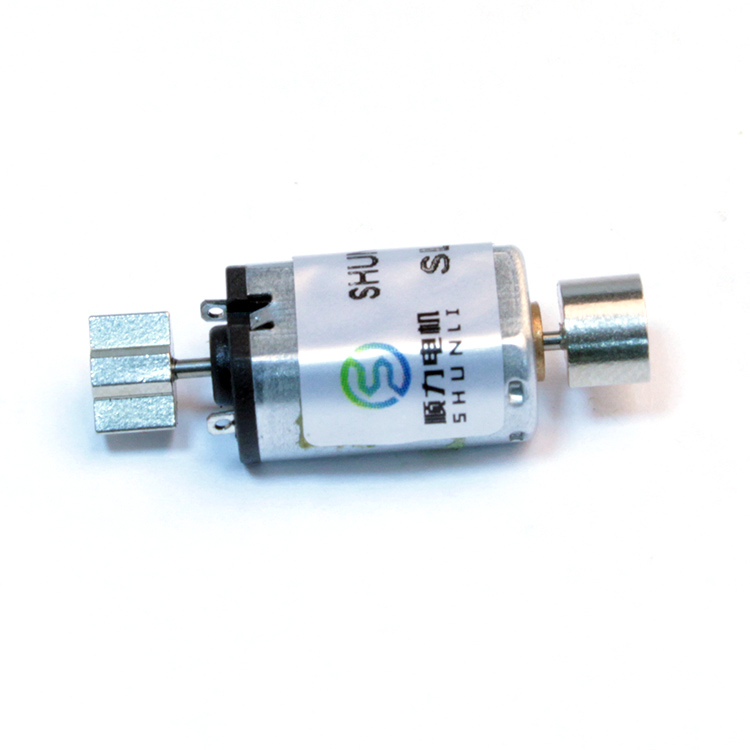

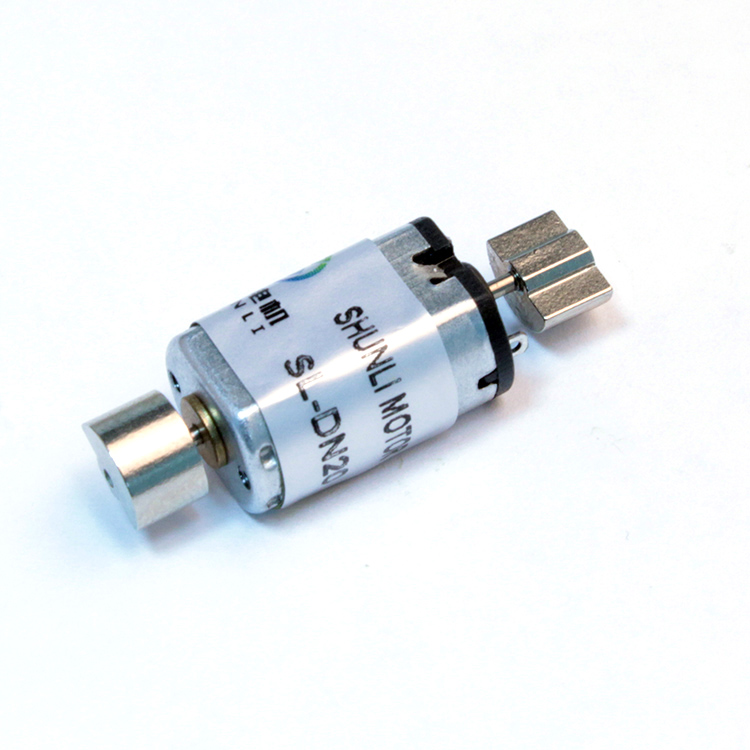

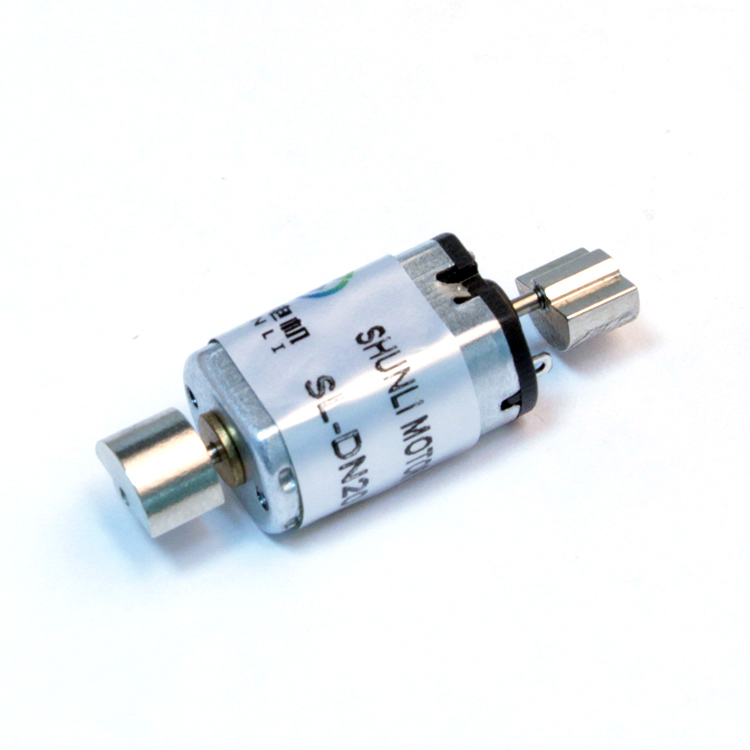

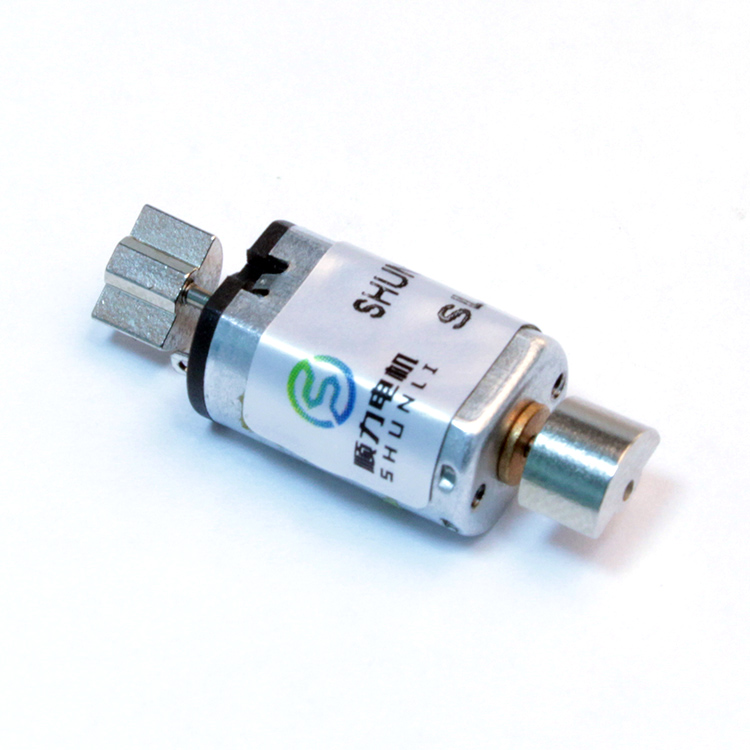

N20 vibration motor designed for adult toy massagers, featuring a 12 mm high-speed DC micro vibrating motor layout for compact and powerful performance.
| PMDC MOTOR Technical Data | ||||||||
|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Eccentric Size | Voltage (V) | Rated | Stall | ||||
| Operating Range | Nominal | Start Voltage | Speed (RPM) | Current (mA) | Current (mA) | |||
| SL-DN20 | 08250 | R5.8*4.8 | 3.0~5.0 | 4VDC | 1.2VDC | 7600 | 110 | 380 |
| 08200 | R5.8*3.6 | 3.0~5.0 | 3.7VDC | 0.8VDC | 8500 | 130 | 480 | |
| 12110 | R5.8*6.0 | 1.5~3.0 | 2.4VDC | 0.8VDC | 9100 | 330 | 1100 | |
| 10145 | R5.8*2.4 | 1.5~4.0 | 3VDC | 0.6VDC | 10600 | 160 | 700 | |
We are a factory specializing in producing motors for more than 14 years. Our professional R&D team, mature management, and experienced engineering and sales team will bring you a pleasant purchasing experience.
In order to confirm quality, from the moment we receive materials to the final shipment, every step of the process is carefully checked. Quality is the basis of our development.
Give us a chance to cooperate with you!
