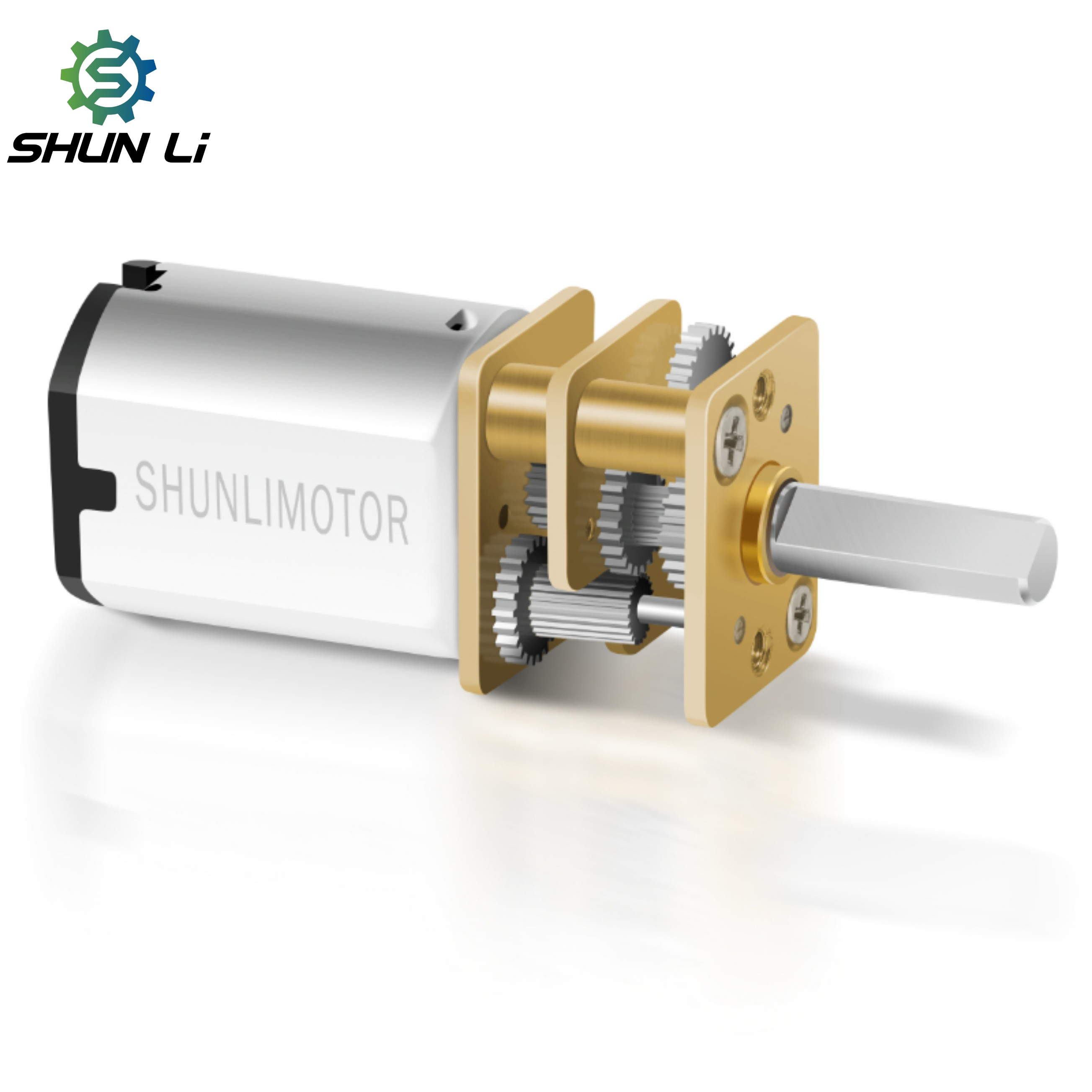

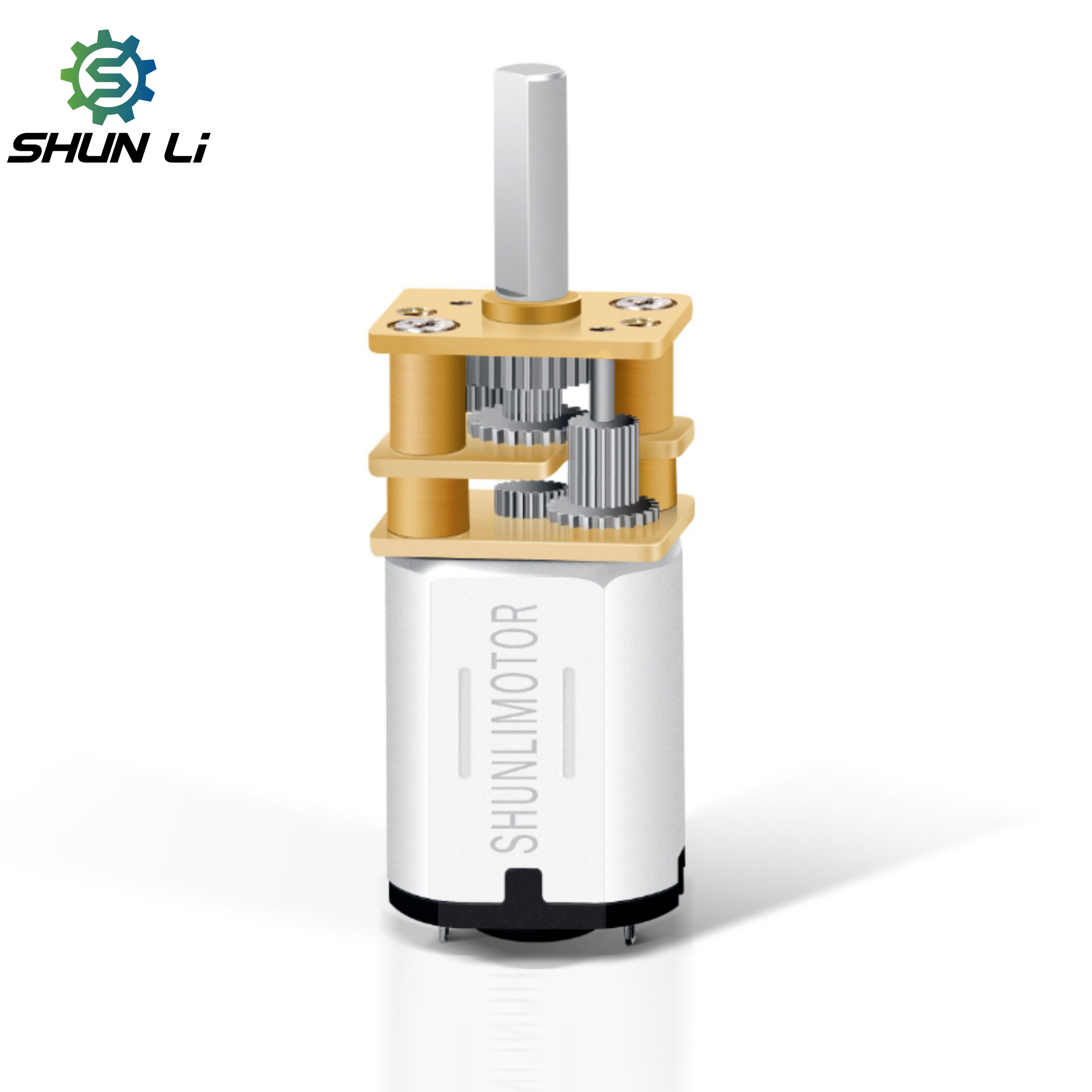

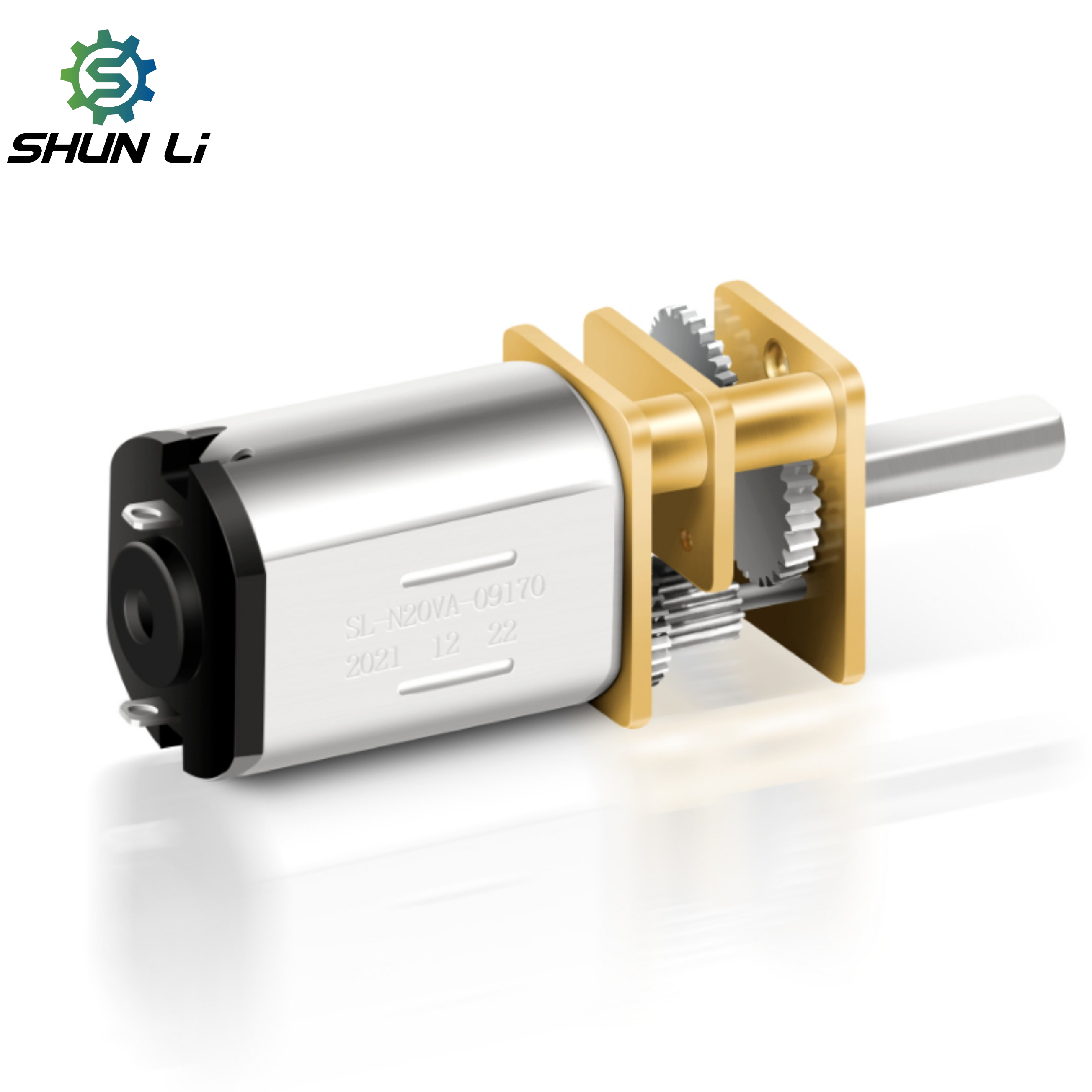

Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
1 / 5
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor
Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor

Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor

Send Inquiry

Product Description

Product Showcase Banner
Product Detail View
Product Model GM12AMN10/N20/N30
Gearbox Length 9mm-12.1mm
Speed 55RPM-2500RPM
Voltage 4.6V/4.5V/6V
Torque 5.5 N.m/2.8 N.m/4.0 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

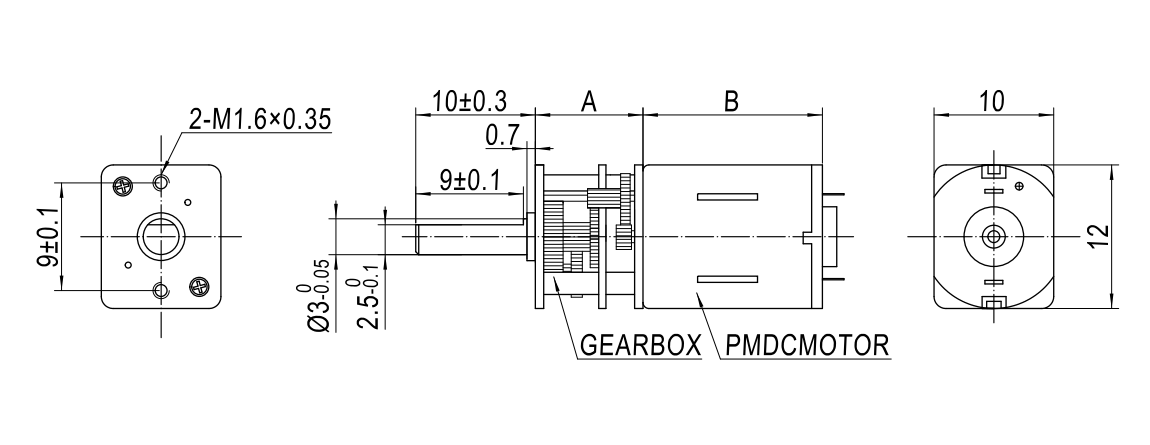

Technical Specifications Blueprint 1

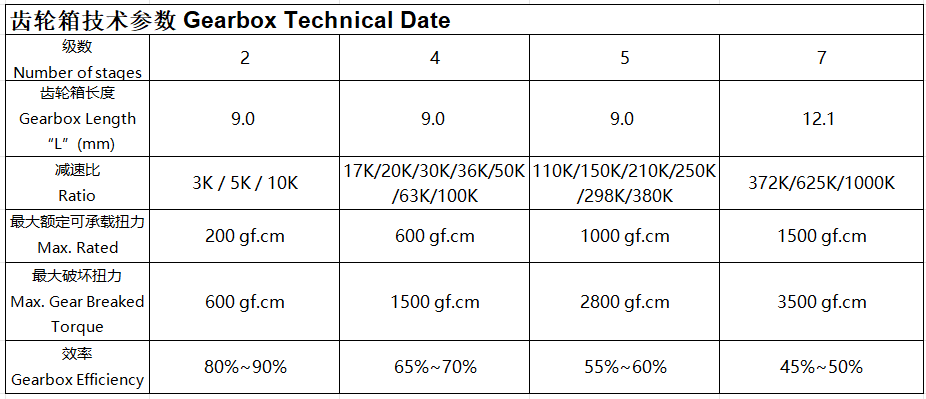

Technical Specifications Blueprint 2
Product Application Display 1
Product Application Display 2
Product Application Display 3
Product Application Display 4
Product Application Display 5
Product Application Display 6
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customers, which allows online payments via Master Card, Visa, etc. Customers can also choose to pay with PayPal, TT, etc.
3. I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
4. Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you require other certifications, we can apply for them on your behalf.
5. How is your Quality Control?
We have professional checking staff on every production line process. After finishing the assembly, we use testing equipment to inspect the motor's properties, including the Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise Tester, etc.
