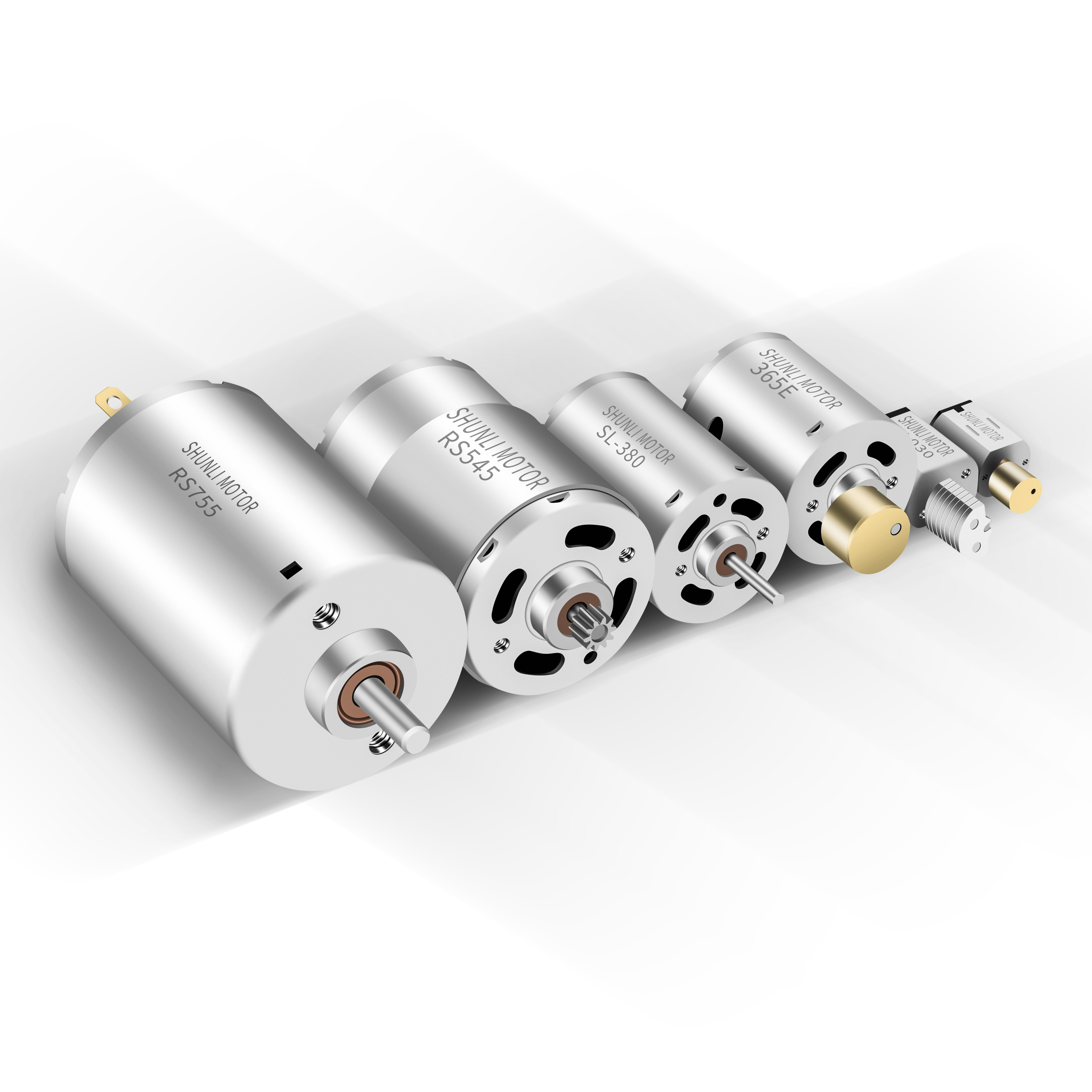

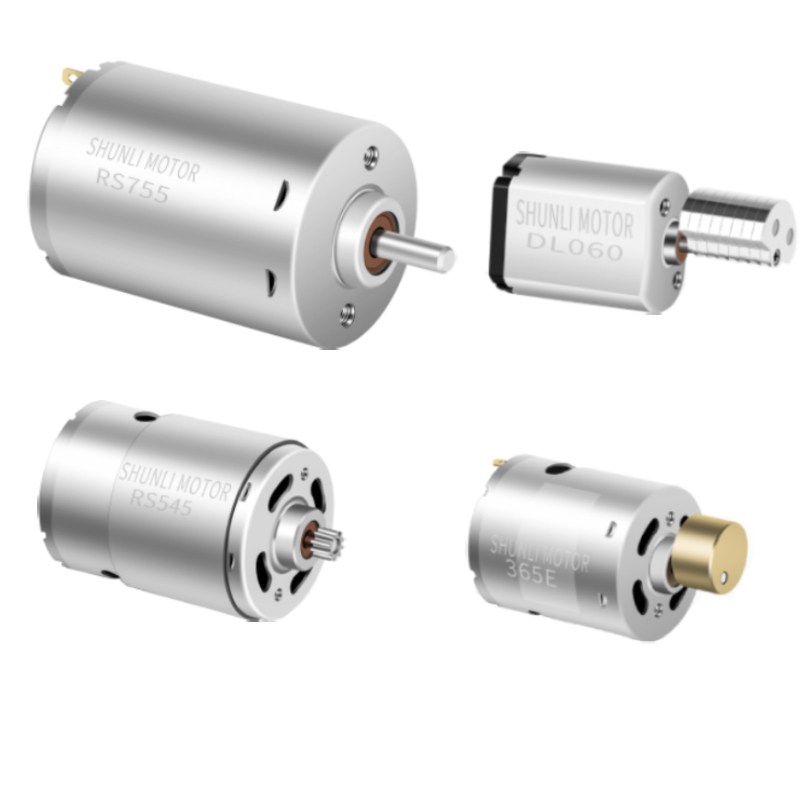

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

1 / 5

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Send Inquiry

Product Description

Application

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM

Product Details

⚙️ Motor Customized Specification

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09

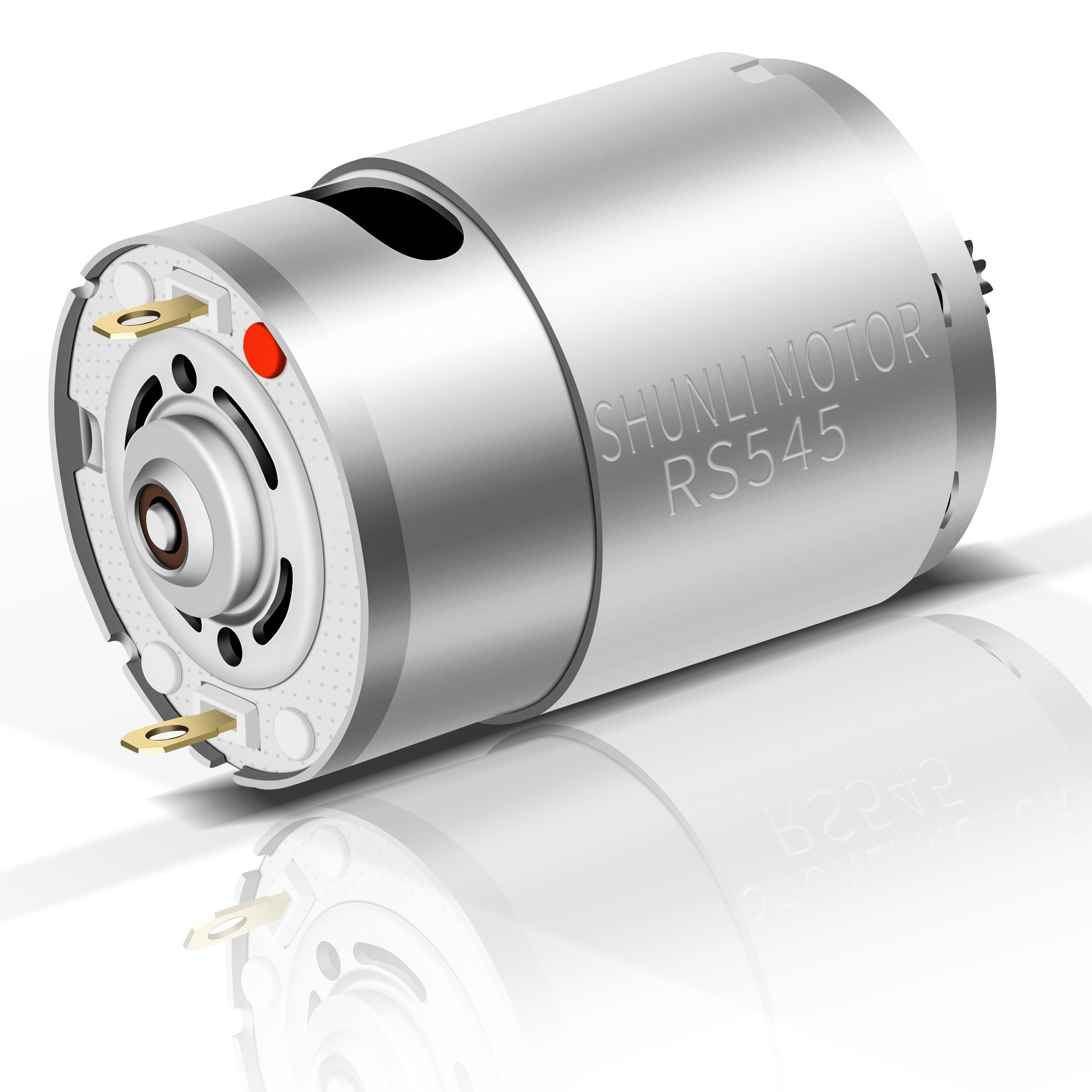

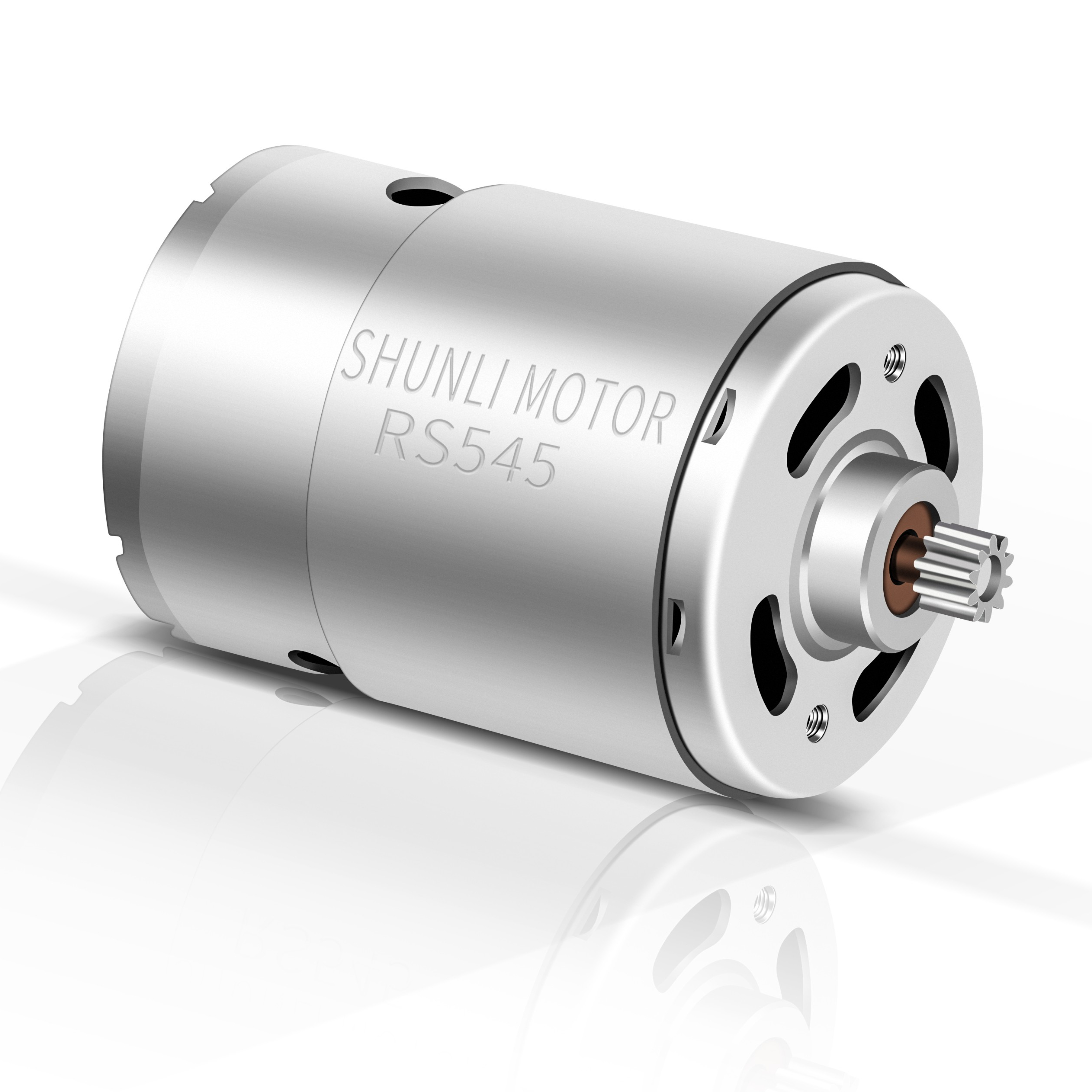

------ RS - 545 A

Product Gallery

Frequently Asked Questions (FAQ)

❓ What voltage options are available for the RS series DC motors?

The RS series PMDC motors operate across a range of nominal voltages including 6V, 12V, 18V, and 24V DC, depending on the specific model and winding configuration.

❓ What are the typical speeds (RPM) of these high RPM DC motors?

These motors are designed for high-speed performance, capable of reaching no-load speeds of up to 15,000 RPM or even 30,000 RPM depending on the configuration and voltage supply.

❓ Can the technical specifications of the RS-550/545/555 motors be customized?

Yes, customized motor specifications including voltage, speed, shaft details, and torque performance can be tailored to meet your unique application requirements.

❓ What are the differences in rated power between the RS-550H and RS-555H models?

According to the technical data, the rated power output ranges from 4.96W up to 40.36W for the RS-550H models, and 12.09W up to 15.35W for the RS-555H models under specified rated loads.

❓ What applications are these PMDC motors suitable for?

Thanks to their compact size and high RPM speeds, these motors are widely used in power tools, automotive components, smart appliances, models, and other mechanical equipment requiring reliable high-speed actuation.

Product Detail

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Product Description
