12V 18V 24V high speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC motor for fan
Product Details
Motor Customized Specification, Please Contact Us.
Reference Technical Specification
BLDC MOTOR Terminations
| PIN NO. |
PIN Arrangement |
| 1 |
VCC |
| 2 |
FG |
| 3 |
CW/CCW |
| 4 |
GND |
| 5 |
PWM |
Reference Datasheet

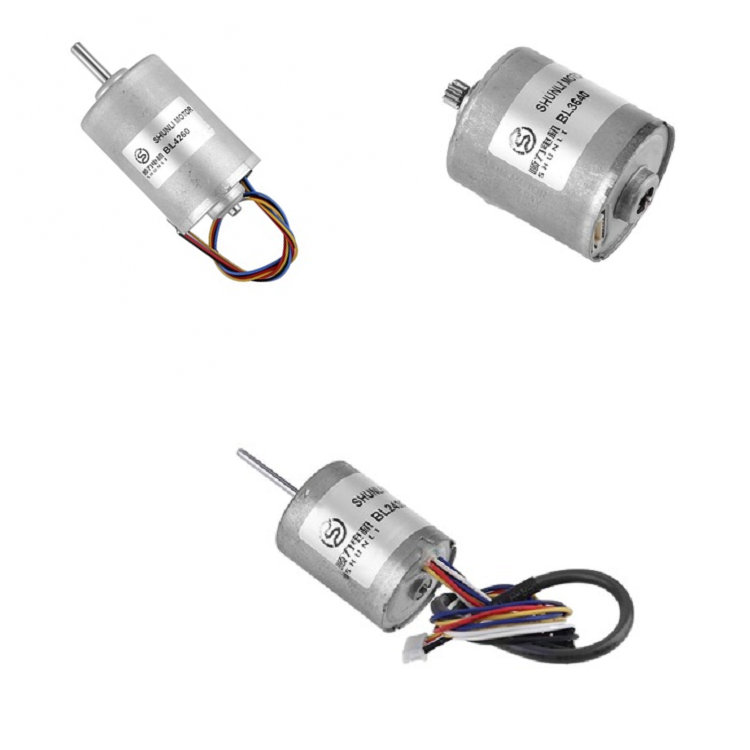

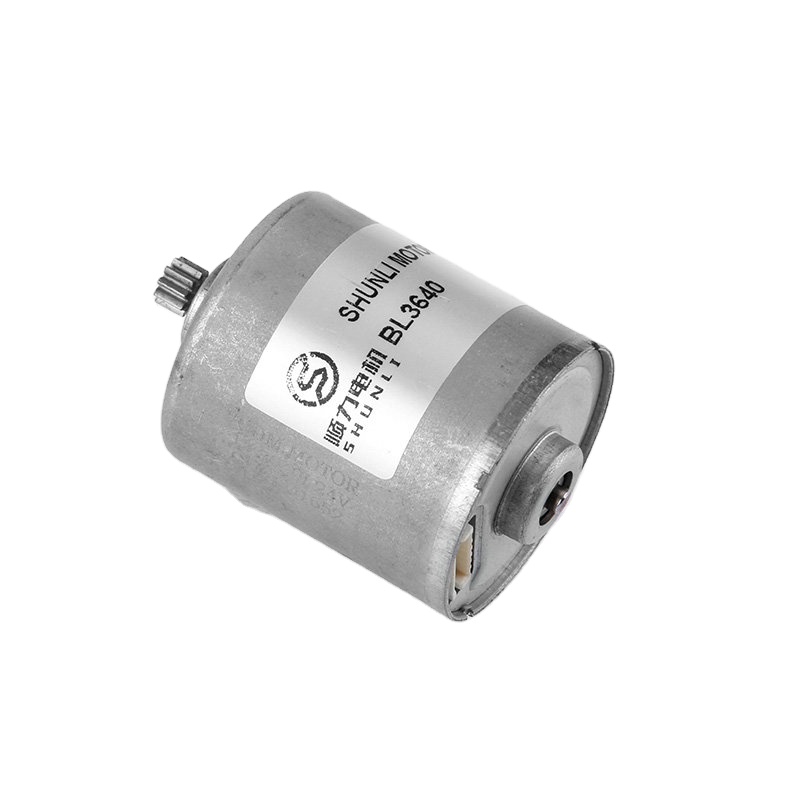

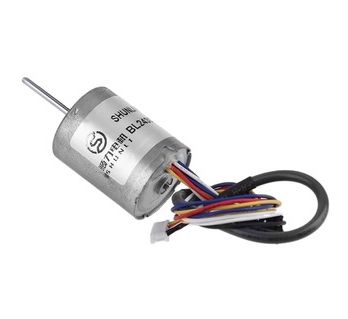

Product Gallery
Frequently Asked Questions (FAQ)
Q1: What are the standard voltage options for this 36mm brushless DC motor?
This high-speed brushless DC motor is designed to operate efficiently at voltage options of 12V, 18V, and 24V.
Q2: What maximum speed can this motor achieve?
Depending on the configuration and voltage, the motor can reach ultra-high speeds ranging from 20,000 RPM up to 40,000 RPM.
Q3: Can I customize the shaft or electric specifications of this motor?
Yes, customized motor specifications are available. Please feel free to send us your requirements.
Q4: What control functions are supported by the BLDC motor terminations?
The motor features standard 5-pin terminations supporting VCC (Power), FG (Feedback/Speed signal), CW/CCW (Direction control), GND (Ground), and PWM (Speed control).
Q5: What is the rated torque for this 36mm brushless fan motor?
The motor delivers high torque capability, typically rated around 100 G.CM to 150 G.CM, ideal for high-speed cooling fan systems.
Q6: Why is this motor suitable for high-speed fans?
The brushless design reduces friction and heat generation, allowing continuous high-speed performance (up to 40,000 RPM) with long lifespan and low noise.
