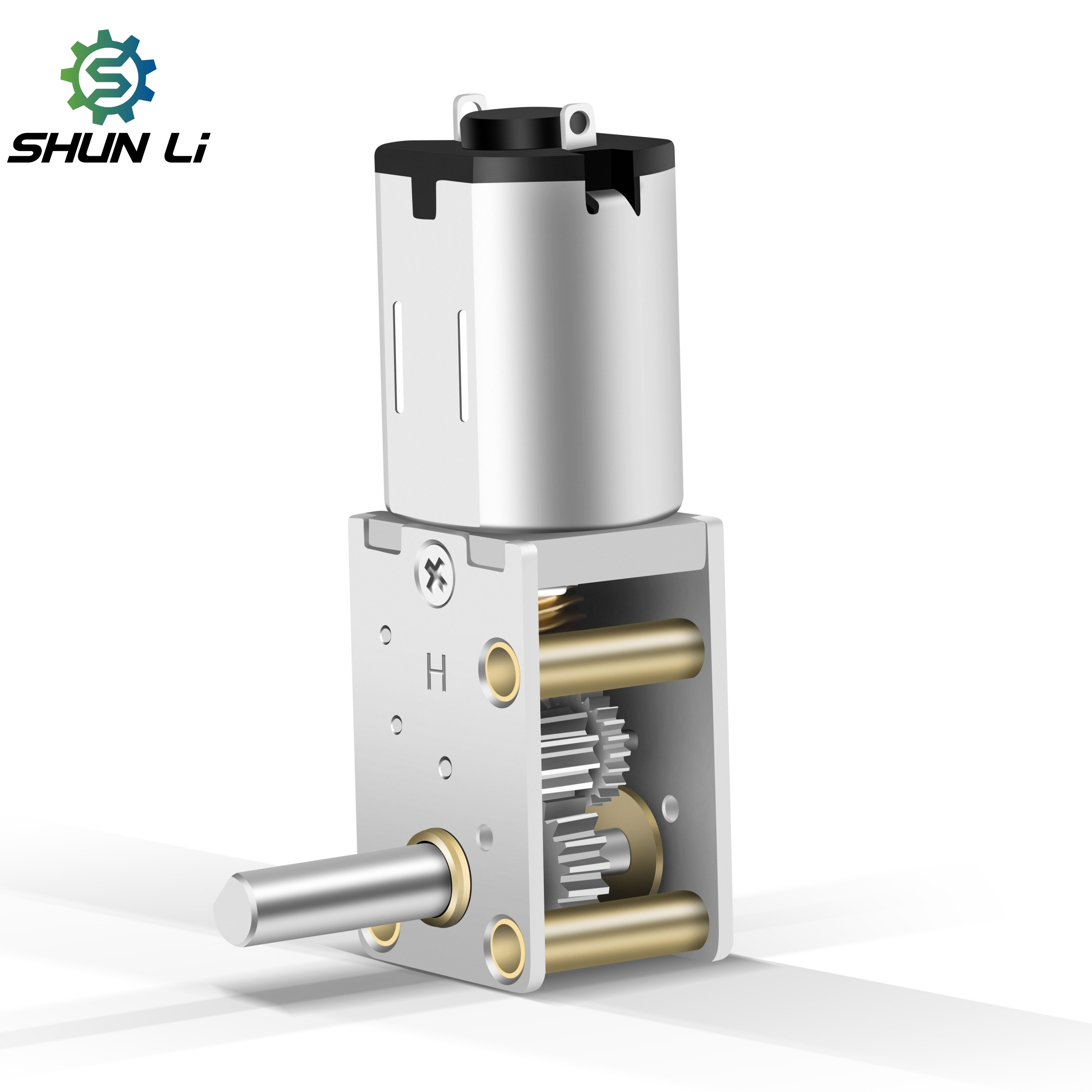

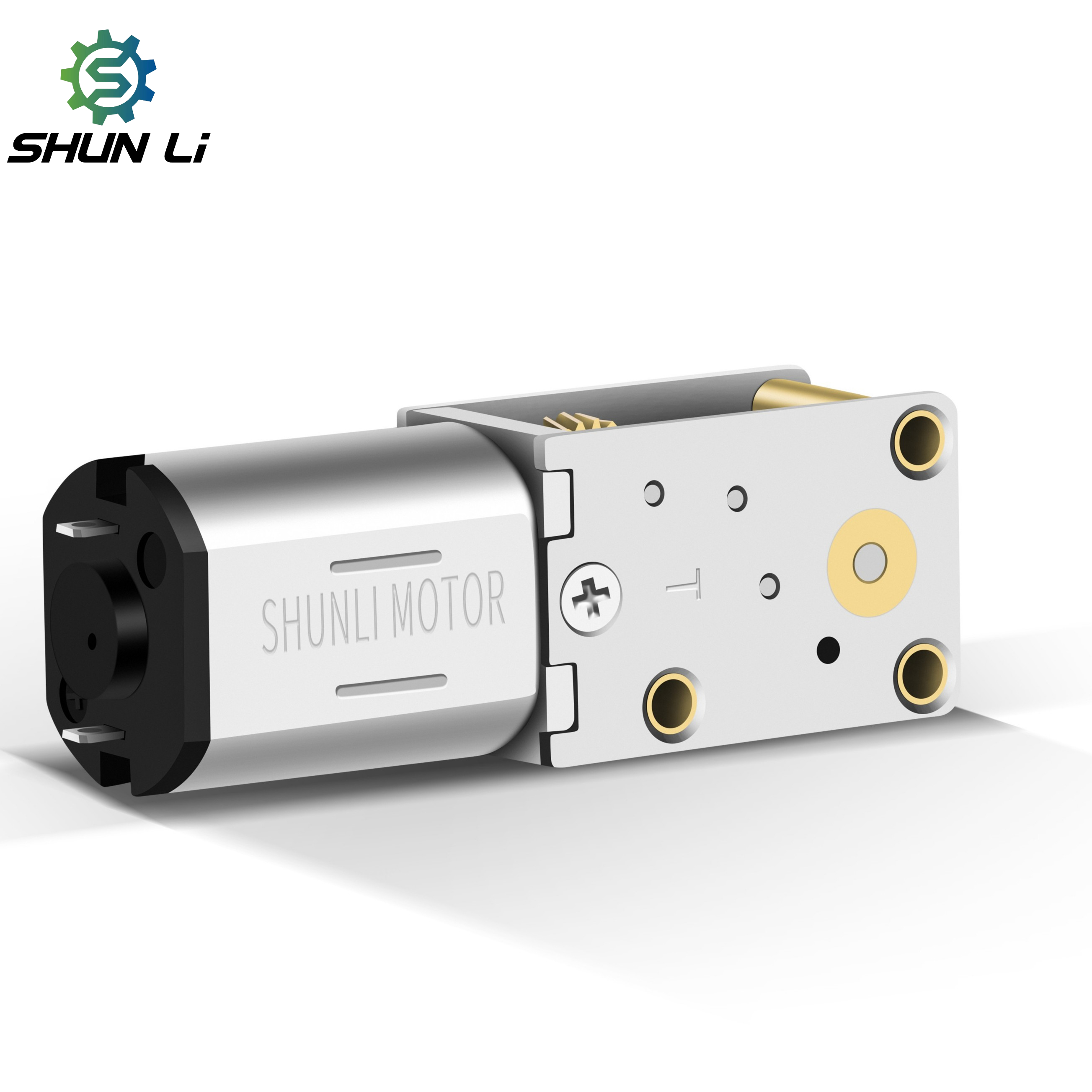

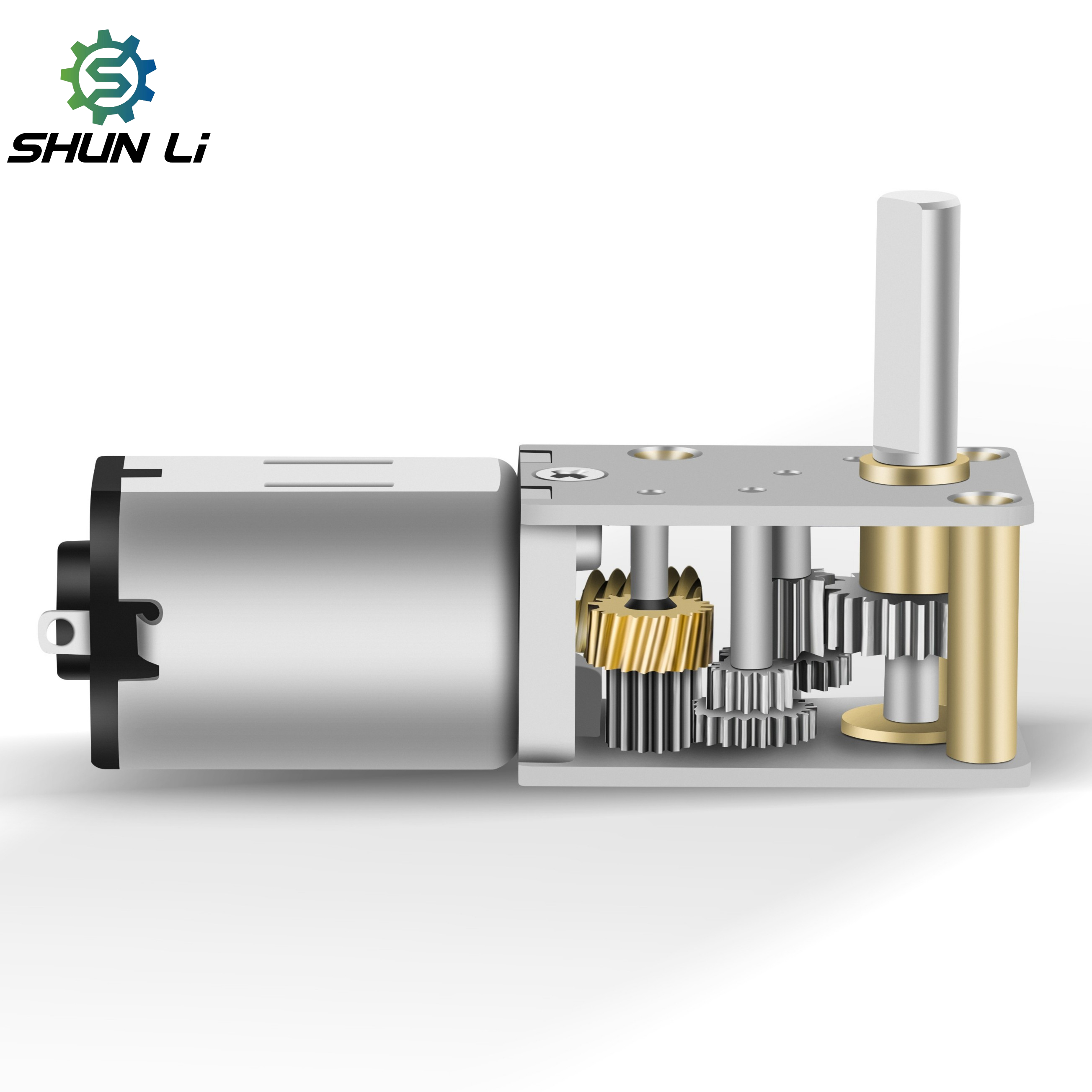

90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
1 / 5
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products

90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products

Send Inquiry

Product Description

Product Presentation
Product Details
Product Model GM1220EMN20/N30
Gearbox Length 20±0.2mm
Speed 22RPM-145RPM
Voltage 4.5V~12V
Rated Torque 8 mN.m/120 mN.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

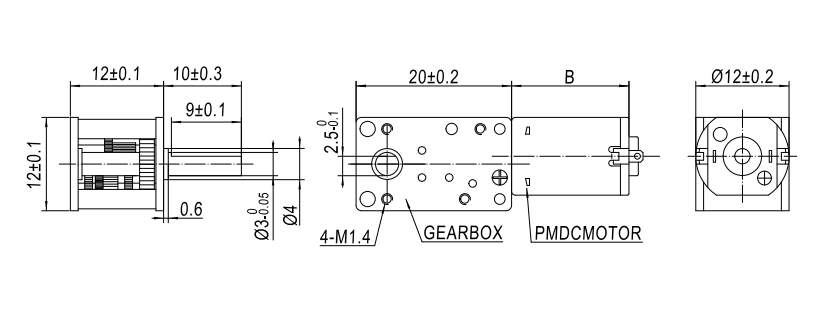

Technical Specifications Diagram

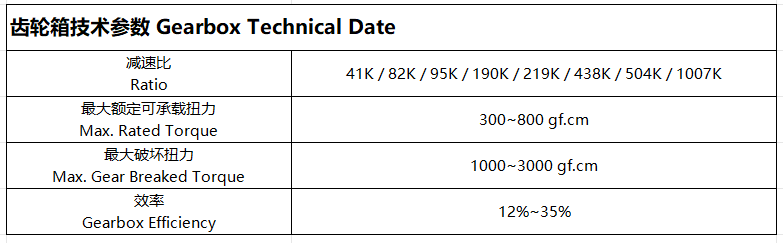

Performance Chart

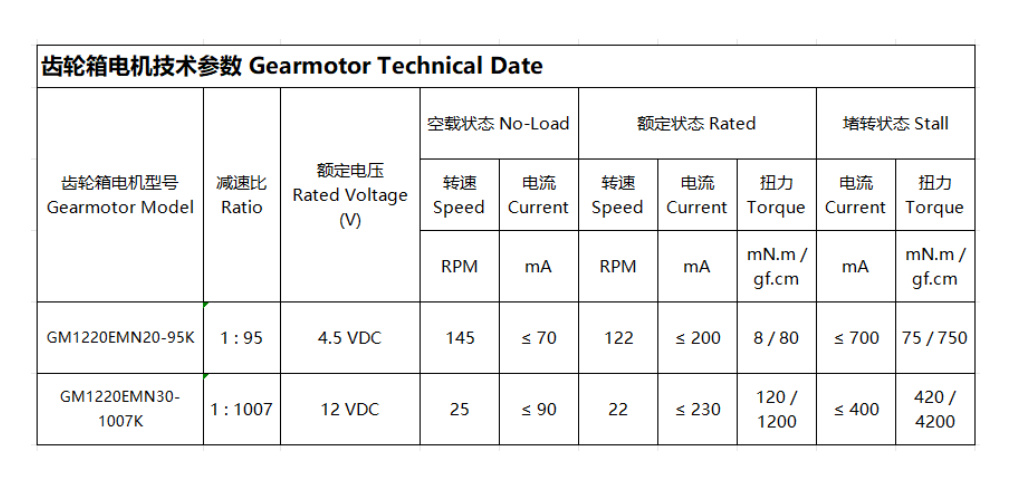

Product Dimensions
Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
Product View 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of professional experience.
What is the payment term for a new customer?
We can set up an online Trade Assurance Order for new clients, which supports secure online payments with Master Card, Visa, and other credit cards. We also accept payments via PayPal, TT, and other standard methods.
I cannot find a suitable motor on your website, can you customize it for me?
Yes, we can design and customize a suitable motor configured directly to your specific technical and dimensional requirements.
Do you have certificates for the motors?
Yes, our motors are certified with CE, FCC, ISO, and other key industry standards. If you have additional certification requirements, we can apply for them to meet your needs.
How is your Quality Control managed?
We have dedicated inspection personnel at every stage of the production line. Once the assembly is complete, we perform comprehensive performance testing using testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Cycle Testers, Temperature Test Chambers, and Noise Testers.
Can we request samples for testing before placing a bulk order?
Yes, sample orders are welcome. We provide evaluation and performance validation samples customized to your specifications before starting full-scale production.

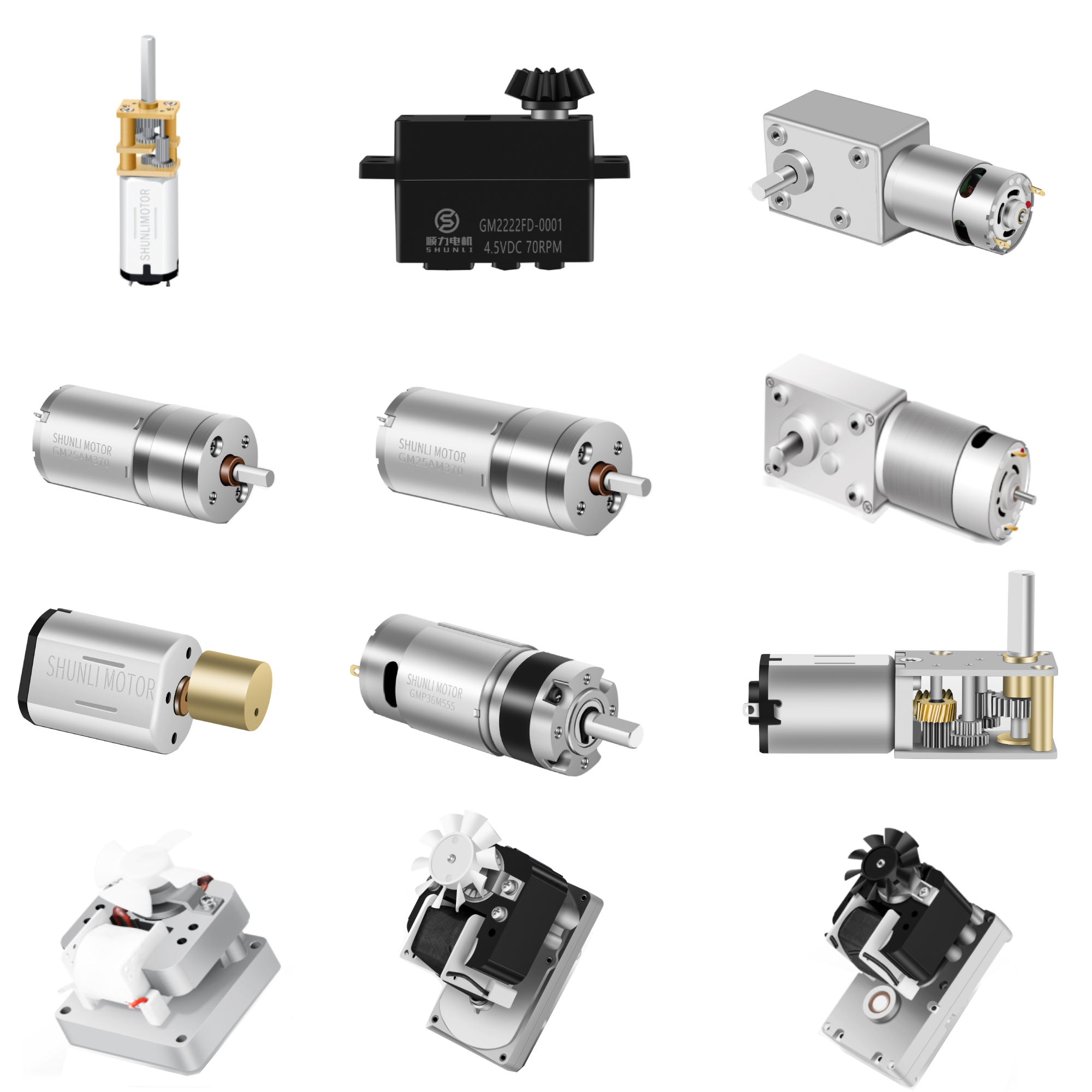

Related Products
