Shunli Vibration Dc Gear Motor 3V 6V 12V 1.4-1.6A 65RPM 75RPM 85RPM Hight Torque Coin Dc Gear Motor for Smart Lock

Product Description

Promotion
Promotion Banner
Product Description

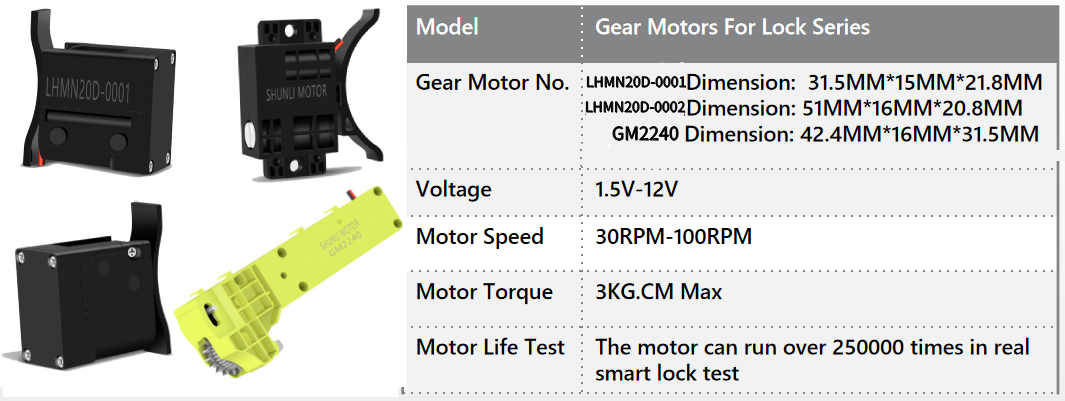

Vibration DC Gear Motor Specifications Overview
Gearbox Technical Data
Ratio 241k
Max. Rated Torque 1.5 ~ 2.0 Kgf.cm
Max. Gear Breaked Torque 4 ~ 5 Kgf.cm
Gearbox Efficiency 45% ~ 60%
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA N.m / Kgf.cm mA N.m / Kgf.cm
GM2240 1 : 241 4.5 VDC 52 ≤ 50 40 ≤ 120 18 / 180 ≤ 350 0.18 / 0.18
58 ≤ 65 50 ≤ 130 24 / 240 ≤ 680 0.2 / 2.0
68 75 56 ≤ 140 26 / 260 ≤ 750 0.22 / 2.2

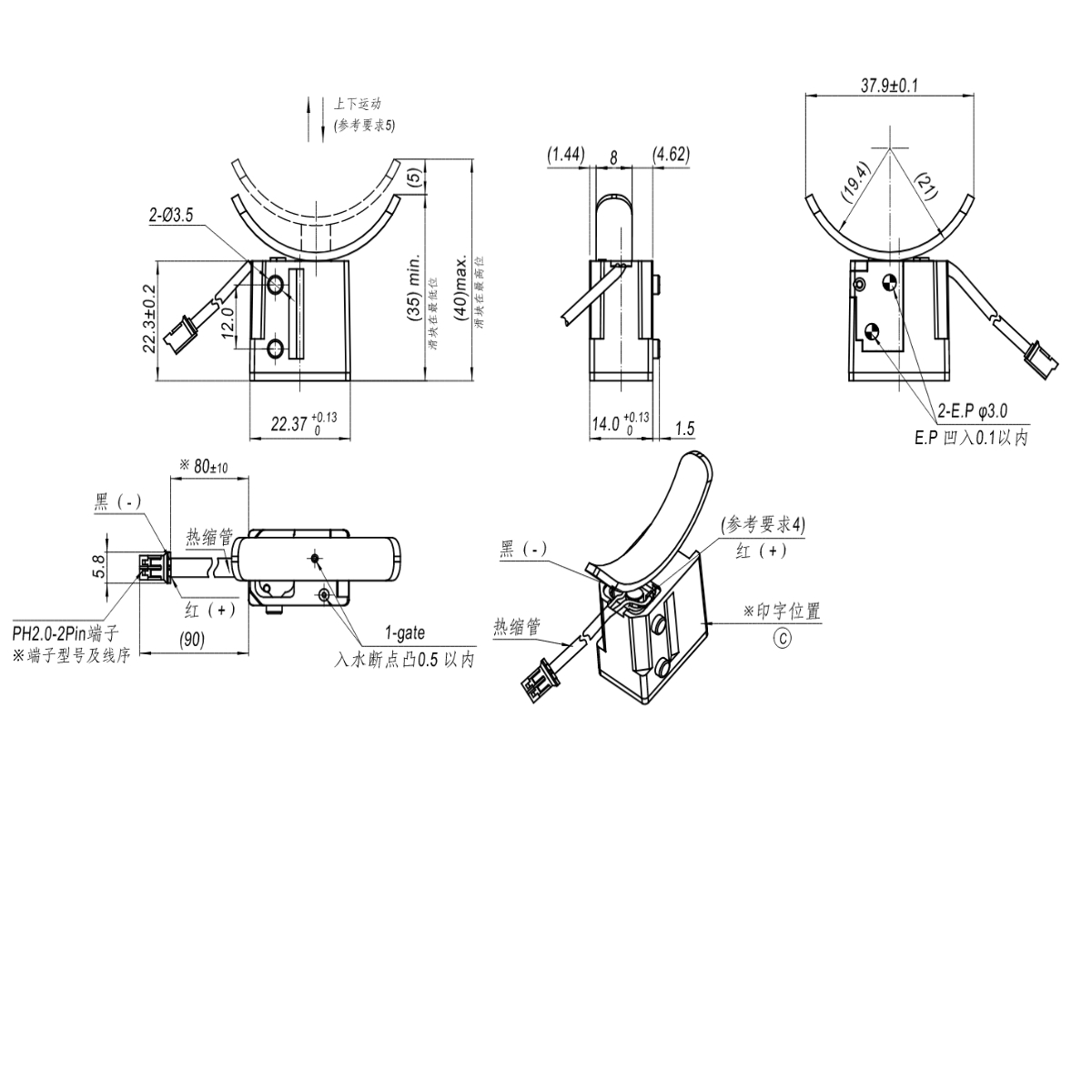

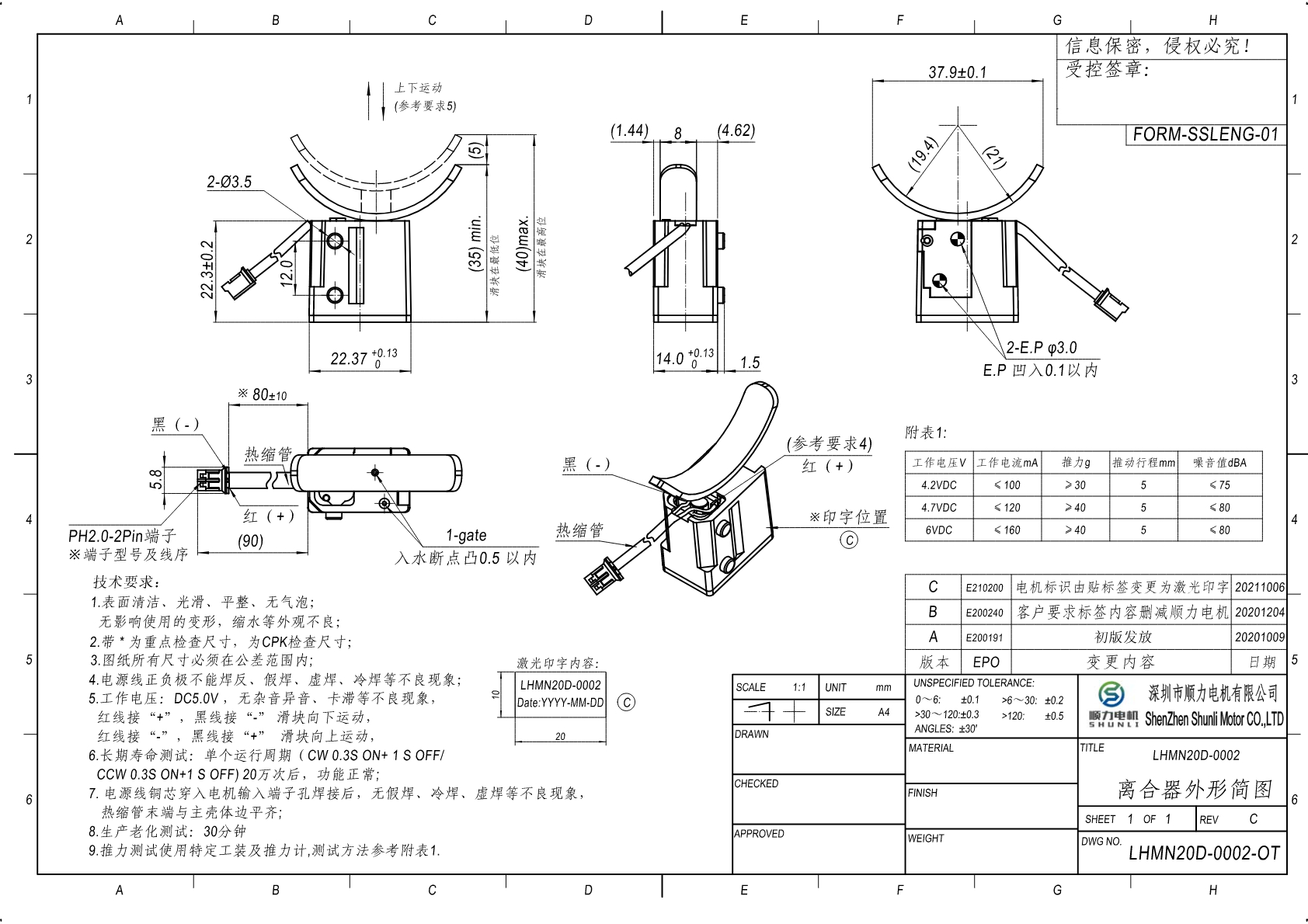

Vibration DC Gear Motor Detailed Dimensions
PMDC MOTOR Model Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA mN.m / gf.cm
SL-N20 04510500 4.5 VDC 10500 ≤ 30 8250 ≤ 80 0.2 / 2.0 ≤ 300 1.05 / 10.5
04514000 4.5 VDC 12000 ≤ 40 12000 ≤ 130 0.25 / 2.5 ≤ 680 1.5 / 15
04516500 4.5 VDC 16500 ≤ 50 13500 ≤ 160 0.25 / 2.5 ≤ 750 1.8 / 18
Applications
Motor Application Diagram 1 Motor Application Diagram 2
Customer Evaluation
Customer Evaluation Feedback
Certifications
Product Quality Certifications
Why Choose Us
1. Manufacturing Experience & R&D Expertise
We are a factory specializing in producing motors for more than 14 years. Our professional R&D team and mature management processes ensure a reliable, efficient, and pleasant manufacturing partnership.
Production Facility
2. Strict Quality Control
To maintain strict quality standards, we carefully inspect and verify every step of the process, from incoming raw materials to final pre-shipment checks. Continuous quality control is the core foundation of our operations.
Quality Control Testing Equipment
FAQ
Q1: Are you a trading company or a manufacturer?
A: We are a professional factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
A: We can establish an Online Trade Assurance Order for new customers, supporting online payments via MasterCard, Visa, PayPal, T/T, and other common payment methods.
Q3: I cannot find a suitable motor on your website, can you customize the motor for me?
A: Yes, we offer extensive customization options. We can adjust the motor specifications, dimensions, and shaft designs to meet your exact application requirements.
Q4: Do you have certificates for the motors?
A: Yes, our motors hold key certifications such as CE, FCC, ISO, and RoHS. If you require additional market-specific certifications, we can apply for them to support your needs.
Q5: How is your Quality Control handled?
A: We place professional inspectors on every step of the production lines. Completed motors are tested using advanced quality control machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Cycle Testers, Temperature Testing Machines, and Noise Testers.
Q6: What is the typical lead time for custom motor orders?
A: Standard production lead times generally range between 15 to 30 days depending on the customization scope, raw material availability, and overall order quantity.
